Your partner for astronomy
Telescopes > Meade > LX80 > Meade Apochromatic refractor AP 80/480 ED Series 6000 LX80
Product no.: 33067

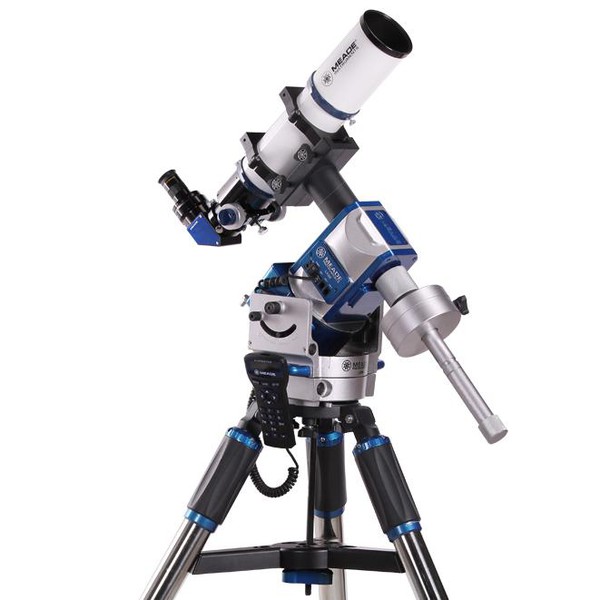

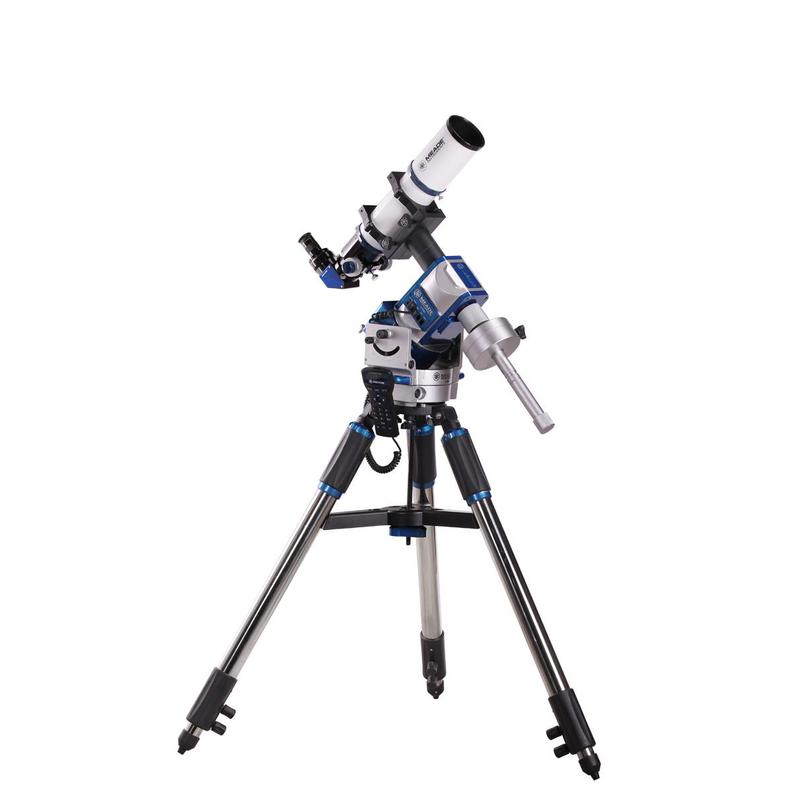

Apochromatic refractor AP 80/480 ED Series 6000 LX80

$ 2,580.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The Series 6000 Apochromatic Refractors are some of the best crafted refractors on the market. Each refractor is individually constructed and tested to ensure that they meet the highest standards, both optically and mechanically.


These telescopes were built with the observer and imager in mind. With the optical design using the highest grade extra-low dispersion optical glass, false color is virtually eliminated, yielding astonishing color correction, contrast, and sharpness.

  • Fully multi-coated optics for enhanced light transmission
  • 2.5” dual-speed rack & pinion focuser with a 10:1 fine focus knob for precise focusing
  • Adapters for 48mm and 42mm standardized T-thread.
  • Sliding dew shield for enhanced portability
  • Vixen-style dovetail with mounting rings
  • Aluminum hard carry case to protect your investment

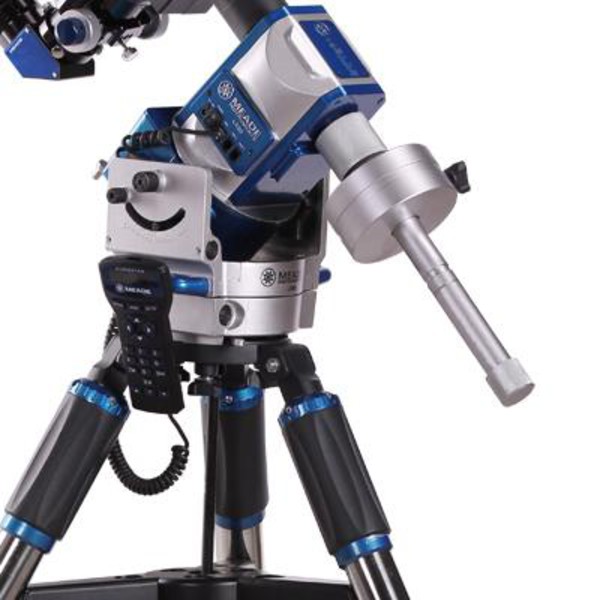

The Meade LX80 mount combines an azimuth dual arm mount and an equatorial mount.

In altazimuth mode, the Meade LX80 can be operated with either one or two OTAs attached: for example with a telescope for wide field observing and a telescope for lunar and planetary observing. The total weight of the two OTAs can be up to about 30kg. In equatorial mode, the mount can take a single OTA of up to about 18 kg.

The precision engineered worm gear drives on both axes ensure precise tracking. The precisely adjustable Periodic Error Correction in equatorial mode makes the LX80 a mount that is suitable for both visual observing and photography.

The Meade 'AudioStar' computer control locates and positions the telescope for over 30,000 objects in the night sky. The 'Astronomer Inside' digital audio technology included means that everyone around the telescope can listen and learn about more than 500 celestial objects. This database includes details about the Moon, planets, nebulae, star clusters, and much more.

The GoTo control can be used in both altazimuth and equatorial modes.

The robust steel tube tripod with the LX80 can be adjusted in height from about 770 to 1190mm. It also has a fine adjustment range of approximately 5mm per leg.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Aperture (mm)
80
Focal length (mm)
480
Aperture ratio (f/)
6
Resolving capacity
1,44
Limit value (mag)
11,3
Light gathering capacity
130
Max. useful magnification
160
Tube weight (kg)
3,27
Tube material
Aluminium

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Gear reduction
1:10 fine focusing

Mount


Type of build
LX80
GoTo control
yes

GoTo control


Database
30.000
Precision
10
Software
AudioStar
GoTo Language
Spanish

Tripod


Type
Tripod
Height (cm)
77 - 119
Weight (kg)
14
Material
Steel

Included accessories


1.25'' eyepieces
SP 26mm
Deviating optics
2", 90° star diagonal
Miscellaneous
Transport cases

General


Series
LX80

Area of application


Moon & Planets
yes
Nebulae & galaxies
not recommended
Nature Observation
yes
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
not recommended
Advanced
yes

Product safety

Manufacturer: Meade Acquisition Corp. / Sea Freight, 89 Hangar Way, CA 95076 Watsonville, US, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
