Telescopes > Meade > LX850 > Meade Telescope ACF-SC 356/2848 UHTC Starlock LX850 GoTo
Product no.: 25179

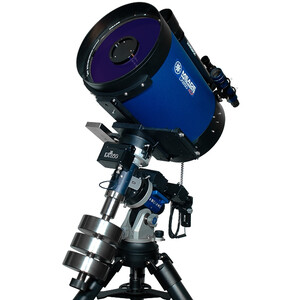

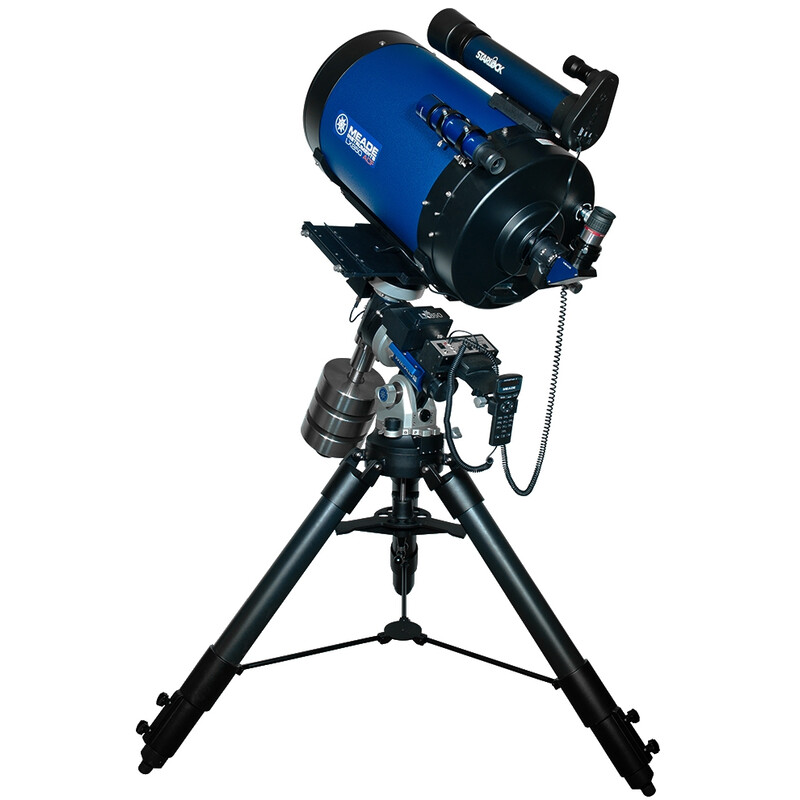

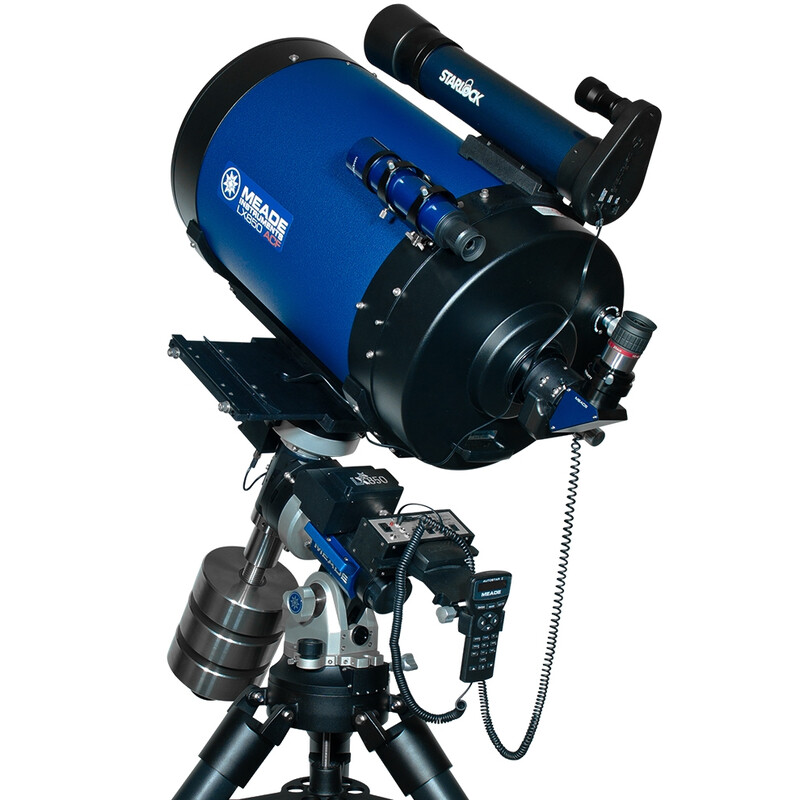

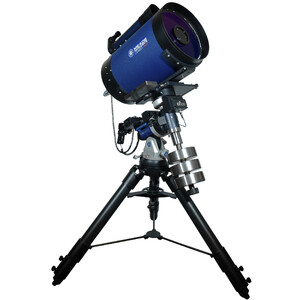

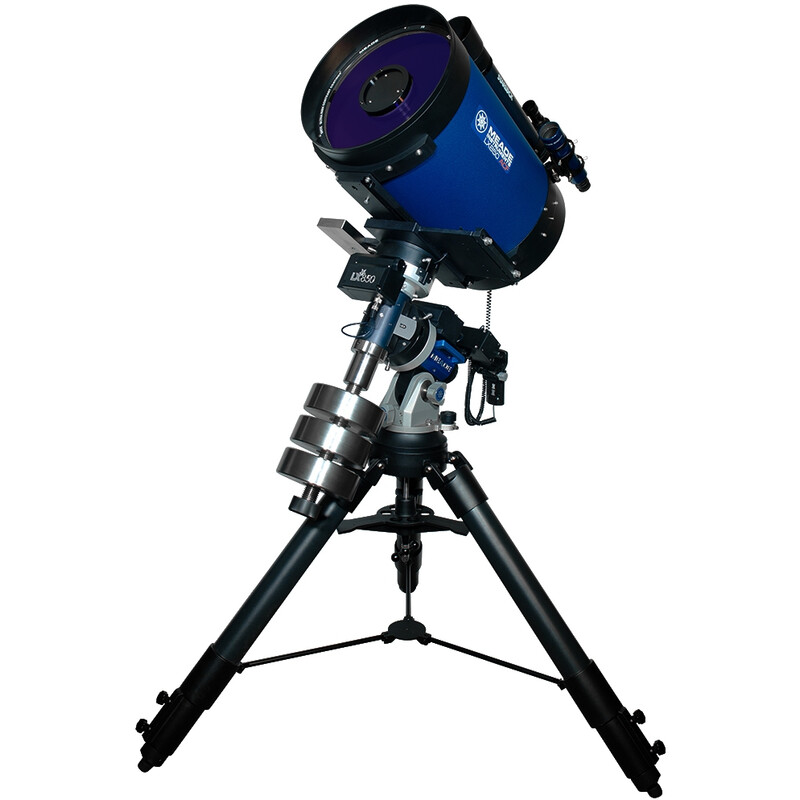

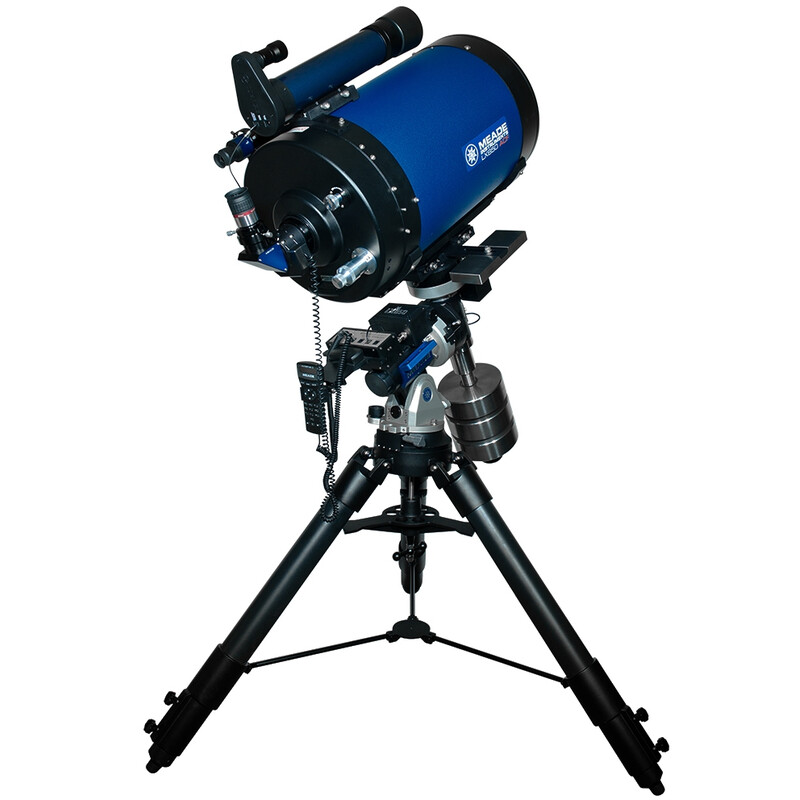

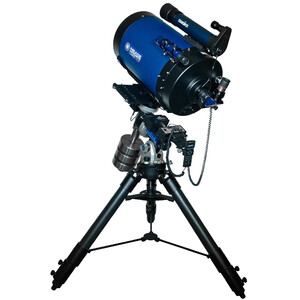

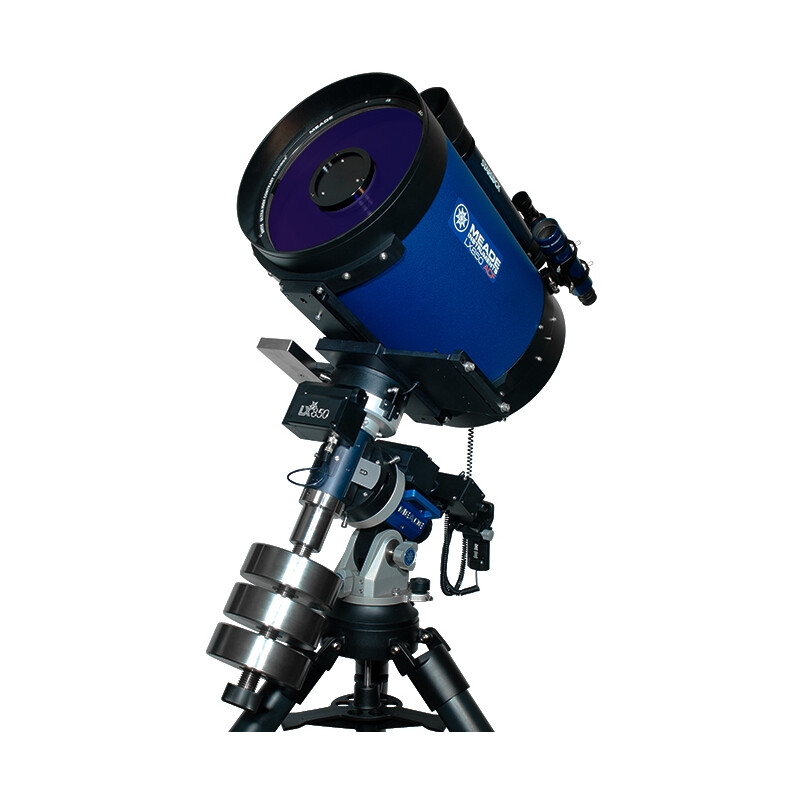

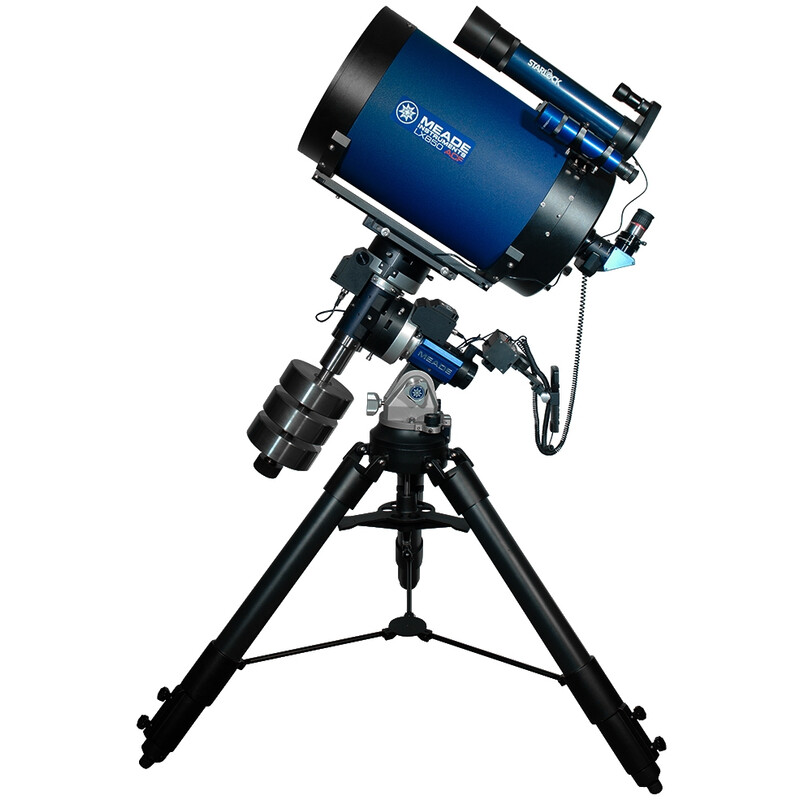

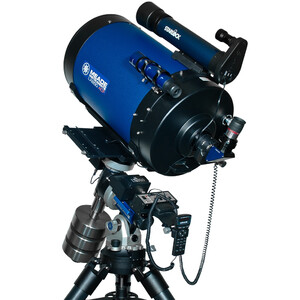

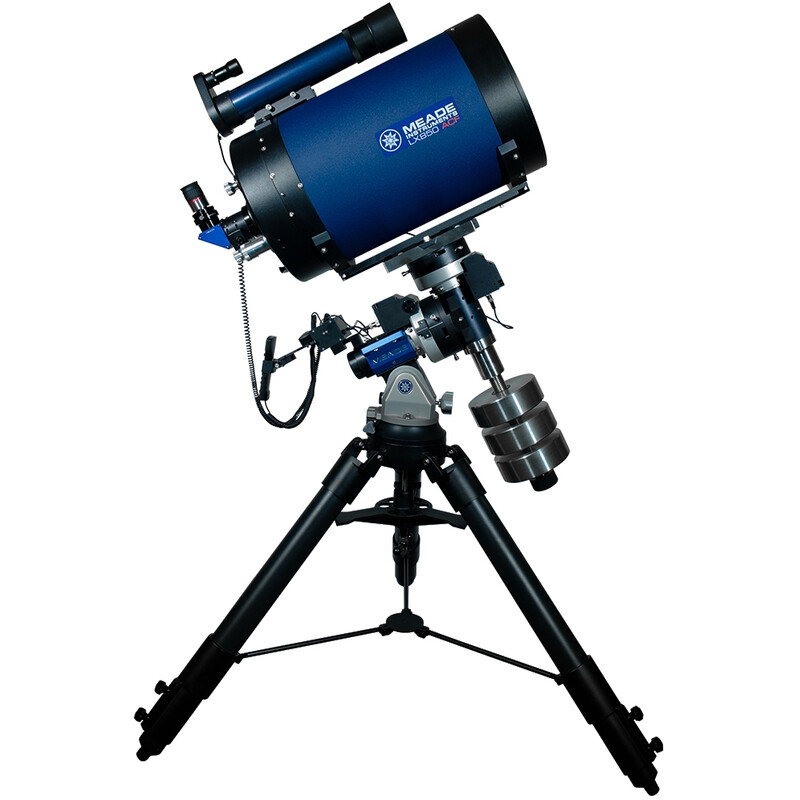

Telescope ACF-SC 356/2848 UHTC Starlock LX850 GoTo

$ 16,300.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

More about the series LX850...

Meade's LX850 series telescopes are the culmination of decades of development, the gold standard for astrophotographic and visual performance with ease of use!

Meade ACF-SC telescopes:

Almost every large telescope worldwide is a Ritchey-Chrétien, including NASA's Hubble space telescope. The technology used by the pros can now belong to you too. Meade's new Advanced Coma-Free System - powerful and high-precision - is within the reach of all ambitious amateur astronomers, astrophotographers and CCD photographers! It provides perfectly sharp star images, at the highest professional observatory level, over the entire field of view. The secret of coma-free system is - as the name says - the complete absence of coma, an optical aberration in which starlight is distorted and pulled into comet-like tails outside the central part of the image. Whether for observing or photography, the ACF Cassegrain optics from Meade is way ahead of conventional mass produced telescopes. It offers fantastic image quality, previously only available from Ritchey Chrétien telescopes and other exotic systems costing several times as much as the Meade system.

Advanced Coma-free Optics (ACF): Meade's ACF optical design eliminates the typical aberrations of all mirror optics. Thanks to ACF, the stars are also point-shaped right out to the edge of the image field, displaying no elongated comet-like distortions. The image field is flatter than that of classic Schmidt-Cassegrain telescopes. ACF optical systems show their strengths especially in astrophotographic applications.

Ultra-High Transmission Coatings (UHTC): This special multi-layer coating on the front correction plate provides up to 15% more light transmission. The result -brighter star clusters, finer details in nebulae and more surface detail on planets!

Crayford style and Micro Focuser: As usual with SC optics, focusing is carried out by adjusting the primary mirror. In the case of simple telescopes this can cause the mirror to tilt, which is noticeable as a shift in the image. This problem is not only completely eliminated in the LX850 but, with a 1:7 Micro Focus, it is also particularly sensitive! The exact focus that you need for photography can be adjusted using the motorised Micro Focuser which is controlled using the handbox.

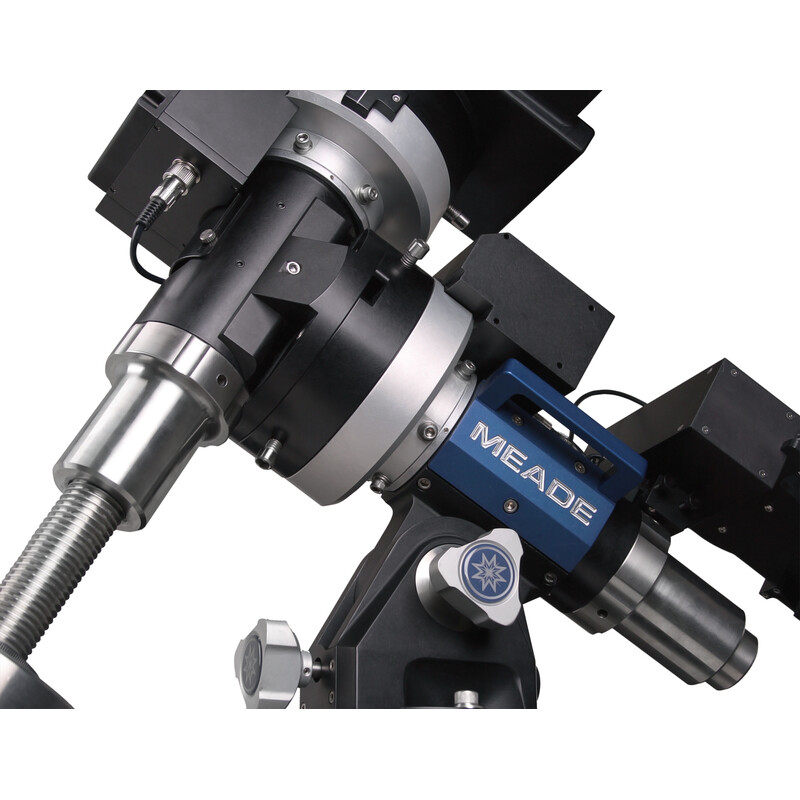

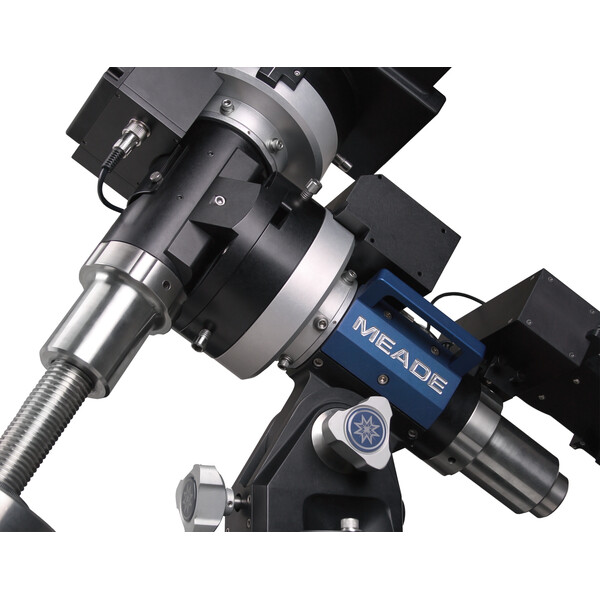

Meade LX850 mount with StarLock: The new Meade LX850 high-strength aluminium and stainless steel equatorial mount provides a precision tracking platform which is also suitable for larger telescopes. This accuracy is due to the large 147mm worm wheels and 17mm worm gears. The GPS supported AutoStar II computer control system can position the telescope on any of a large database of 144,000 astronomical objects.

Starlock is a camera and control system that performs three important functions

  • Periodic error correction (PEC)
  • precise GoTo positioning
  • auto-guiding for astrophotography with an accuracy of less than one arcsecond

  1. The two Starlock cameras with their different optics function perfectly together. The wide-field camera provides a rough positioning. The near-field camera can then position objects with an accuracy of up to one arcminute.
  2. Alignment also takes place via these two cameras. They bring the necessary alignment stars to the very centre of the field of view, as the basis for optimal GoTo.
  3. StarLock works using permanent and automatic auto-guiding for maximum tracking accuracy. As soon as the telescope returns to tracking mode after a slew (for example, after positioning an astronomical object), the near-field camera automatically searches for a suitable guide star down to a minimum brightness of 11 magnitude. This is then tracked as until the telescope is moved again.
  4. The Drift Alignment Assistant makes an optimal polar alignment possible when operating Starlock on an equatorial mount - the telescope slews to a matching star. A 30-second long exposure using the wide-field camera is used to calculate the exact deviation of the telescope from the true celestial pole. The mount then uses previously calculated true position. With the help of the fine adjustment on the polar wedge, the telescope can now be exactly aligned to this point - alignment of the azimuth axis is now perfect!
  5. Data for StarLock cameras

  • wide-field camera - lens diameter is 25mm, focal length is 26mm f/1.04, 1/2 CMOS sensor, field of view is 14.72°x11.78°
  • near-field camera - lens diameter is 80mm, focal length is 400mm f/5, 1/2 CMOS sensor, field of view id 57.2 'x 45.8'
  • weight 2.7kg

Note: The cameras are only for alignment and control of the telescope. You cannot read out their images. Doing astrophotography requires a separate camera.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
356
Focal length (mm)
2848
Aperture ratio (f/)
8
Resolving capacity
0,32
Limit value (mag)
14,6
Light gathering capacity
2590
Max. useful magnification
712
Tube weight (kg)
29
Tube material
Aluminium
Tube construction
Full tube
Coating
UHTC

Reflector


Main mirror´s construction
spherical
secondary mirror design
hyperbolic
Primary mirror - Material
Borosilicate glass
Secondary mirror material
Borosilicate glass
Secondary mirror obstruction
36
Correction plate - Material
Float glass (SCHOTT AG, Germany)
corrector plate coatings
UHTC
Adjustable
yes
Ventilation for central mirror
no

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Gear reduction
1:7 fine focusing
Motorized
yes
Ring clamp
yes

Mount


Mounting type
Equatorial
Type of build
LX850
GoTo control
yes
Encoder
yes
Internal clock
yes
Cable-guide
internal
Weight (kg)
25
Mounting saddle
Losmandy-Style
Motors
Servomotors
Polar elevation setting (°)
10 - 70
Power supply
12
Load capacity (kg)
41

GoTo control


Database
144.000
Precision
1
Hand Controller
AutoStar II
GoTo Language
English
Alignment method
Starlock
GPS
yes
PEC correction
Meade Smart Drive
Polar Alignment
Starlock Drift Alignment
Software
AutoStar II
WIFI
no
Autoguiding
Starlock

Tripod


Type
Tripod
Material
Aluminium
Weight (kg)
16
Max. tripod height (cm)
114
Min. tripod height (cm)
74
Tripod leg diameter (mm)
76
Accessory plate
yes

Included accessories


Finder scope
8x50
1.25'' eyepieces
25mm
Miscellaneous
Anti-vibration Pads
Counterweights (kg)
3 x 12
Deviating optics
1.25", 90° star diagonal
Eyepiece adaptor
1,25" - 2"

General


Series
LX850
Total weight (kg)
145

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Recommended accessories

Workshop service (1)

Astroshop Adjustment & auto-collimation star test Schmidt Cassegrain 12"-16"

$ 129.00*
Telescope accessories > Prisms & Diagonal mirrors (4)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Transport & storage (4)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Cables & power supplies (3)

Omegon 12V car battery cable (7m) for car cigarette lighter socket 5.5x2.5mm for Meade telescopes

$ 11.90*
Telescope accessories > Other (7)
Soft dew shield cap

Astrozap Soft dew shield cap SC 14''

$ 183.00*
Eyepieces (4)
Eyepiece

Omegon Eyepiece LE Planetary 18mm 1,25''

$ 149.00*
Eyepieces (3)
Eyepiece

Omegon SWA 38mm eyepiece, 2”

$ 179.00*
Eyepieces (4)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (1)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Moon filters & Polarizing filters (3)
Filters

Omegon Filters 2'' Moon filter 25% Transmission

$ 24.90*
Filters > Other (3)

Omegon 2'' filter wheel

$ 189.00*
Astrophotography > Camera adaptor (3)
Camera adaptor

Omegon Camera adaptor T2-Ring compatible with Canon EOS

$ 19.90*
Astrophotography > Other (5)
flat field mask

Artesky Flatfield premium generator, 550mm

$ 1,030.00*
Mountings & accessories > Counterweights (3)
Counterweight

Meade Stainless Steel Counterweight LX850 12kg

$ 580.00*
Mountings & accessories > Other (2)

Losmandy dovetail plate for Meade 14" SC

$ 271.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 18.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Meade Telescope ACF-SC 356/2848 UHTC Starlock LX850 GoTo

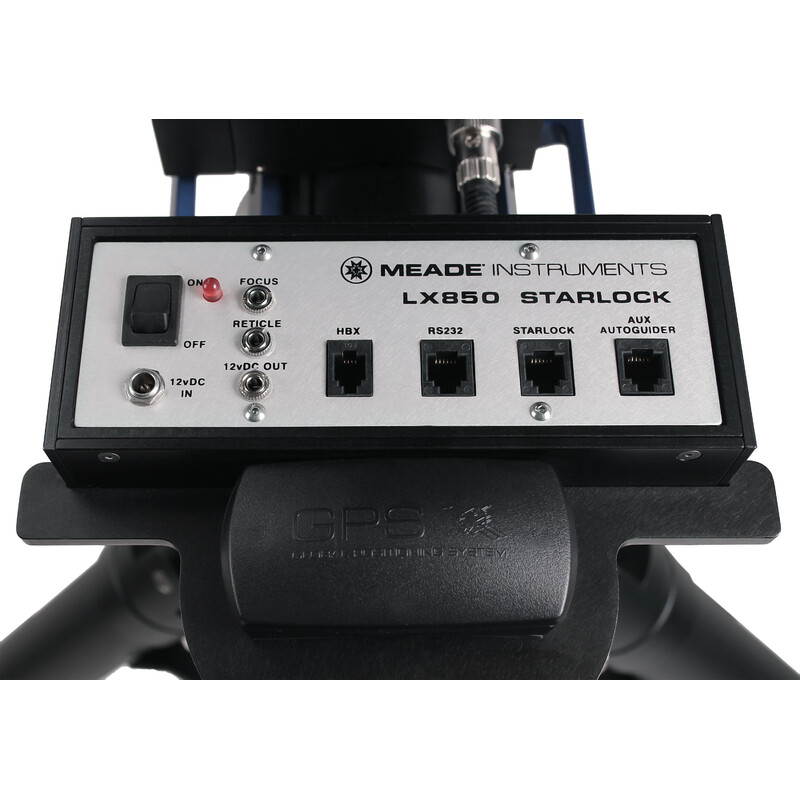

Connections
