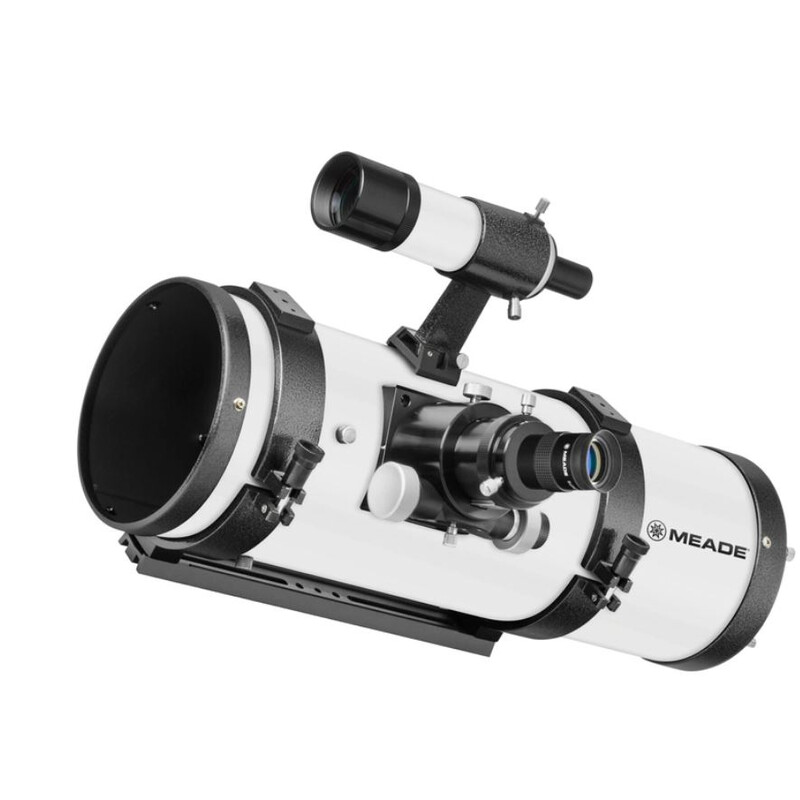

Telescope N 150/610 LX85 OTA

$ 1,060.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
  • Light-gathering Newtonian reflector for astrophotography
  • M48 camera thread
  • Sensitive focuser with 1:10 reduction ratio
  • Extra thin secondary mirror spider

Product description

The manufacturer has temporarily discontinued production. You can find Meade brand items in stock here.

In brief:

  • Fast photo Newtonian for astrophotography
  • M48 connection thread for cameras
  • Sensitive focuser with 1:10 reduction
  • Extra-thin secondary mirror mount

This Newtonian is a compact, very fast instrument (f/4.1) for high-resolution astrophotography with short exposure times. It is ideal for large emission nebulae and galaxies. Despite the fastfocal ratio and optimisation as a photo Newtonian, it is also a pleasure to use for visual observation, especially for deep sky objects! The large focuser with 1:10 fine drive allows for a bright image field and precise focusing. The secondary mirror struts are kept extra thin to cause as little obstruction as possible in the optical path, resulting in better contrast. With a generous back focus of 77 millimetres, there is enough working distance for additional accessories such as a coma corrector or filter wheel. For astrophotography with this fast aperture ratio, you will definitely need a good coma corrector to maintain sharpness and point-like stars across the entire image field. With smaller camera sensors and purely visual use of this Newtonian, a coma corrector may not be absolutely necessary.

The scope comes with an 8x50 finder, a 35 mm extension tube (important for visual use), a 26 mm Super Plössl eyepiece and a fan for faster cooling of the primary mirror.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
150
Focal length (mm)
610
Aperture ratio (f/)
4,1
Resolving capacity
0,77
Limit value (mag)
12,3
Light gathering capacity
460
Max. useful magnification
300
Tube weight (kg)
5,7
Tube material
Steel
Fully Corrected Field (mm)
22

Reflector


Main mirror´s construction
parabolic
secondary mirror design
Plan
Adjustable
yes
Primary mirror - Material
BK7
Secondary mirror obstruction
18
Ventilation for central mirror
yes

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M48
Backfocus (mm)
77,1
Motorized
no
Gear reduction
1:10 fine focusing
Rotating
no

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Finder scope
8x50
Corrector
without
Prism rail
Vixen-Style
Extension tubes
yes
Tube clamps
yes
Miscellaneous
Super Plössl 26mm 1.25"

General


Series
OTA
Total weight (kg)
6

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
not recommended
Advanced
yes
Observatories
no
