Telescopes > Omegon > Pro APO > Omegon Telescope Pro APO AP 100/580 Quadruplet CEM40
Product no.: 71262

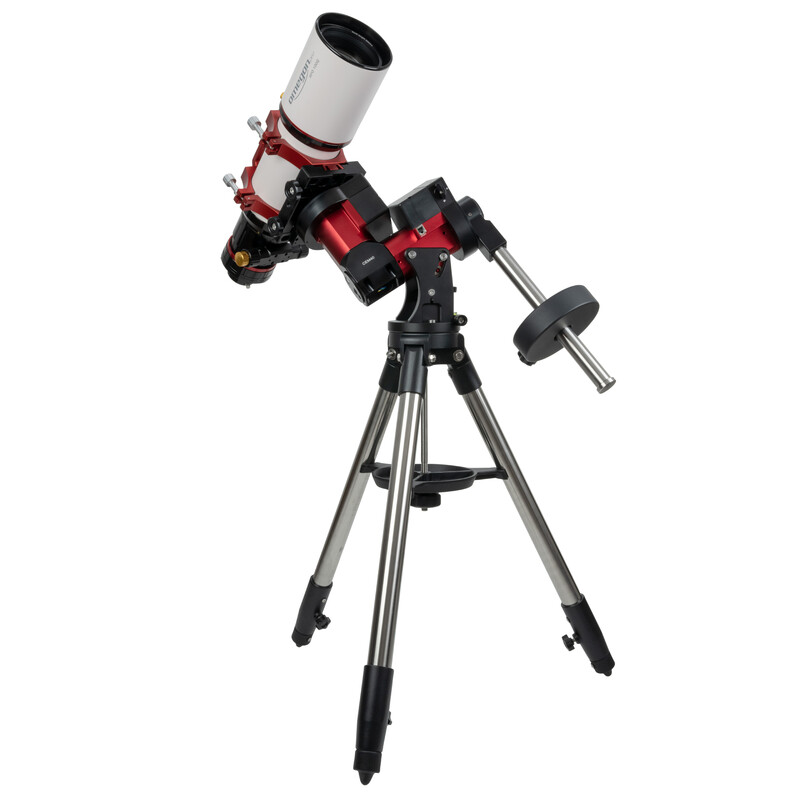

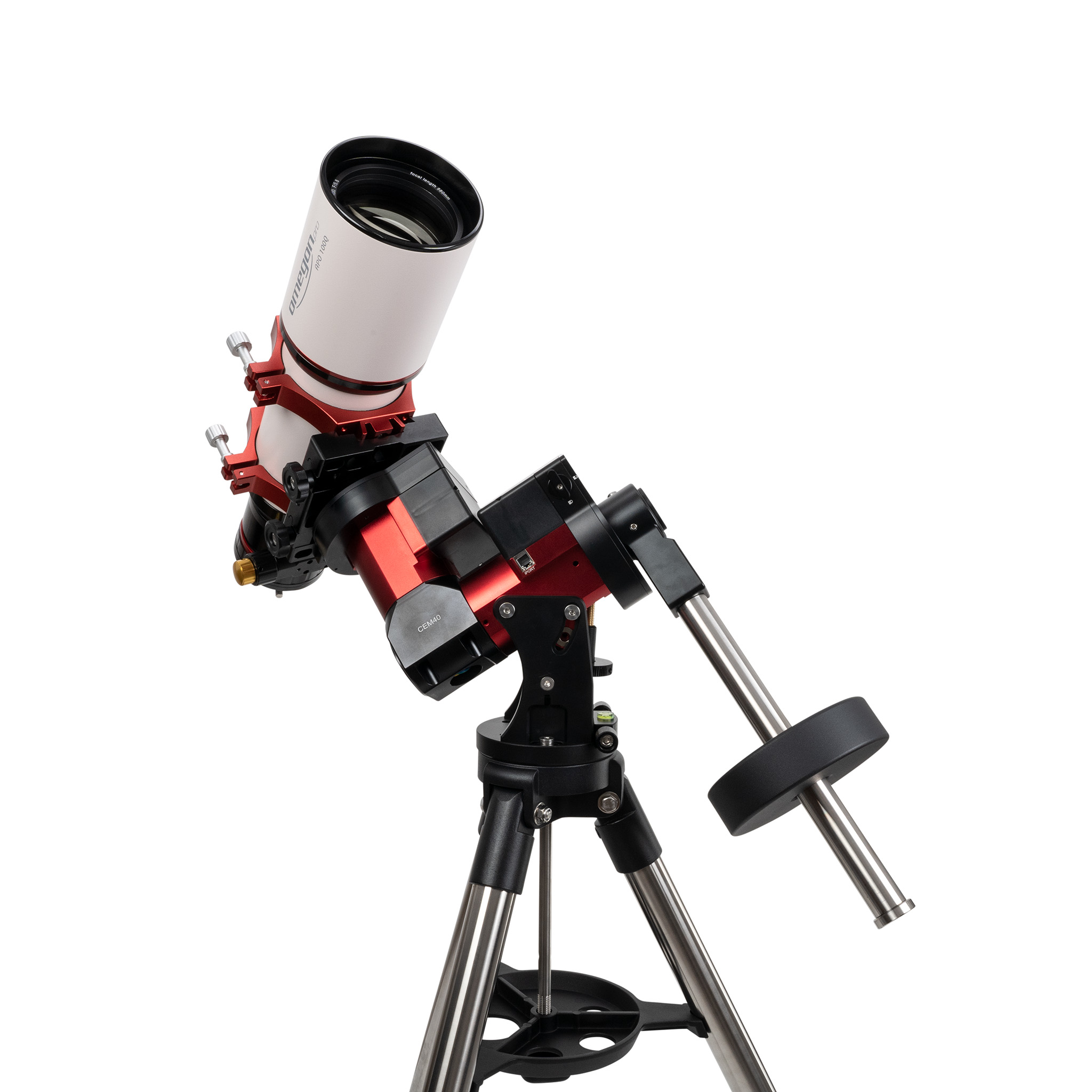

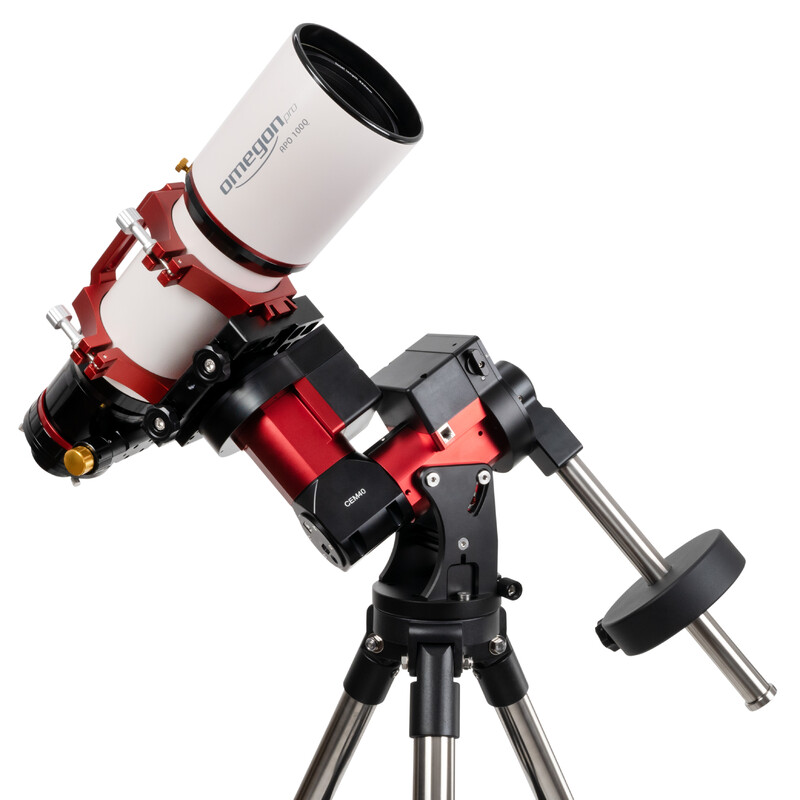

Telescope Pro APO AP 100/580 Quadruplet CEM40

RRP: $ 5,788.00 Our price:
$ 5,690.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series Pro APO...

Better astrophotos that help you discover the sky in a new way.
What is it that drives astrophotographers time and again? It is the fascination of depicting the sky in its most beautiful colours and shapes. With this apochromat, you can do just that. The premium ED glass and a colour-pure image make for enjoyable observations with fine details that would not be possible with basic optics. Rediscover the sky.

The highlights at a glance:

  • 100mm quadruplet ED Apo with four lenses for stunning astrophotos
  • A two-lens integrated corrector that provides complete illumination of your full-frame camera with an image circle diameter of 44mm.
  • 3.5" focuser with a 1:10 reduction ratio: Easily focus larger and heavier cameras with high precision
  • Camera rotates 360° so you can find the right orientation

The mount head weighs only 8.2 kg, yet can support a payload of up to 18 kg. This extremly good payload to weight ratio of 2.5 makes the CEM40 versatile. You can carry it to your favoriert place under a dark sky or at your backyard observatory with a relatively small pier.

But there are more advantages:

  • An integrated electronic polar finder scope (iPolar) ensures accurate alignment even at times when the pole star is obscured.
  • Large levers on its quick-lock drive engagement system make it easy to snap its gears into place even when wearing gloves.
  • There's little chance of your cables getting snagged with the CEM40's internal cable management system.
  • The mount comes with the new Universal Self-Centering Saddle for Losmandy and Vixen style dovetails.
  • The CNC body looks sharp but is really robust.

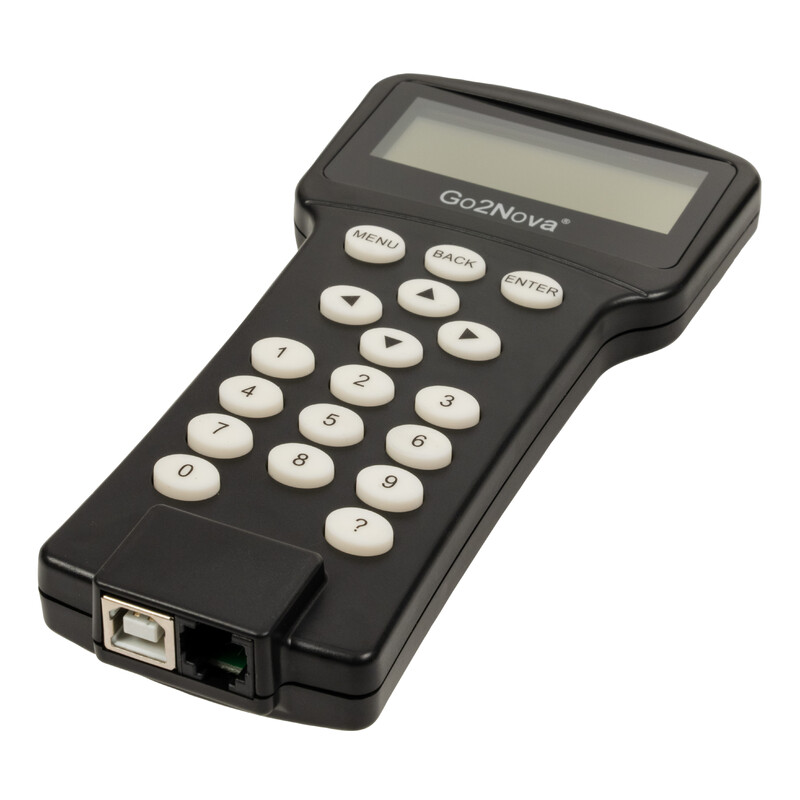

The GoTo-Technology features a Go2Nova 8407+ controller with integrated heater for its large display, a 212,000 object library, integrated 32-channel-GPS and ST-4 auto guiding port.

Another great feature besides the center-balance is the ultra-quiet low power consumption stepper motor drive systems. Both models of the CEM40 are precise trackers, the CEM40-EC version delivering <0.25 arcsecond accuracy with its high-resolution encoder and its real time periodic error correction (RPEC).

The CEM40 is a extremly versatile and advanced mount.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
100
Focal length (mm)
580
Aperture ratio (f/)
5,8
Resolving capacity
1,3
Limit value (mag)
11,8
Max. useful magnification
200
tube diameter (mm)
110
Tube construction
Full tube
Light gathering capacity
204
Coating
multiple
lens design
Quadruplet

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
2 (M48)
Rotating
yes
Gear reduction
1:10 Fine movement
Adjustment range (mm)
39
Ring clamp
yes

Mount


Type of build
CEM
GoTo control
yes
Mounting type
Equatorial

Included accessories


Eyepiece adaptor
1,25" & 2"
Tube clamps
yes
finder base
Vixen/Skywatcher Level
Prism rail
Vixen-Style
Corrector
integrated
Transport cases
yes
Test protocol
no

General


Series
Pro APO
Length (mm)
520
Total weight (kg)
5,1

Area of application


Nature Observation
yes
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes (very good)
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
yes
