Apochromatic refractor AP 126/970 ZenithStar 126 Gold OTA

$ 2,880.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

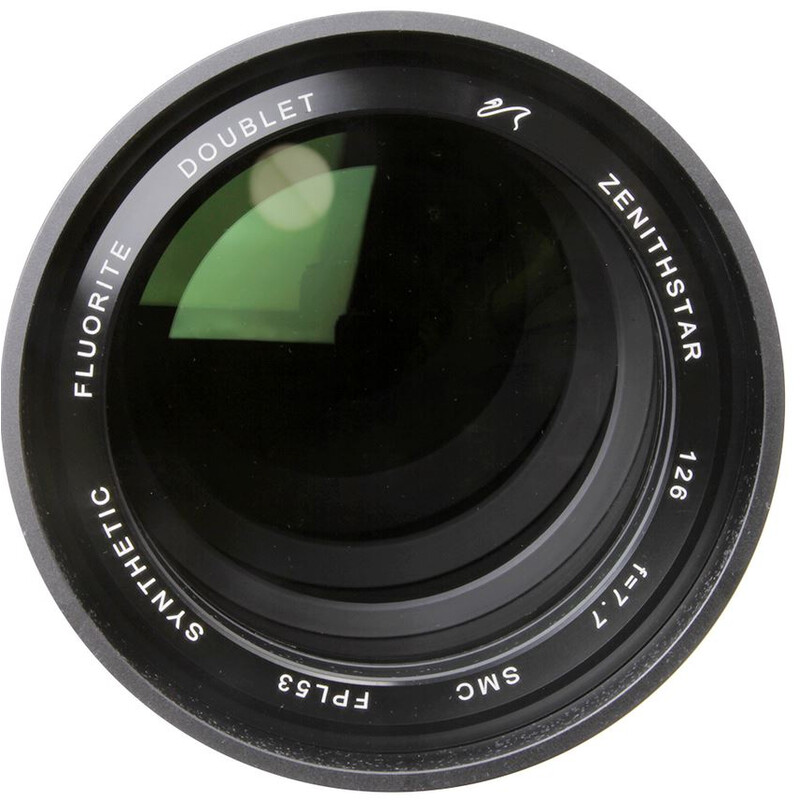

With an aperture of 126 millimetres, the Z126 is the largest model in the very popular ZenithStar series. The synthetic fluorite FPL53 duplet with air gap sits in a precision CNC-machined lens cell and ensures the sharp, high-contrast images that are so typical of the ZenithStar series apochromats.

With the optional flattener, the corrected image field is 43 millimetres in diameter, sufficient for illuminating a full-frame DSLR – and that with a fast aperture ratio of f/6.2.

The Zenithstar 126 Apo comes with a newly developed 3.3" R&P focuser. This has a sufficiently high load capacity for all photographic accessories, can be rotated 360° and is naturally equipped with a reduction gear. Every astrophotographer knows how important a good focuser is. The Z126's focuser meets these requirements.

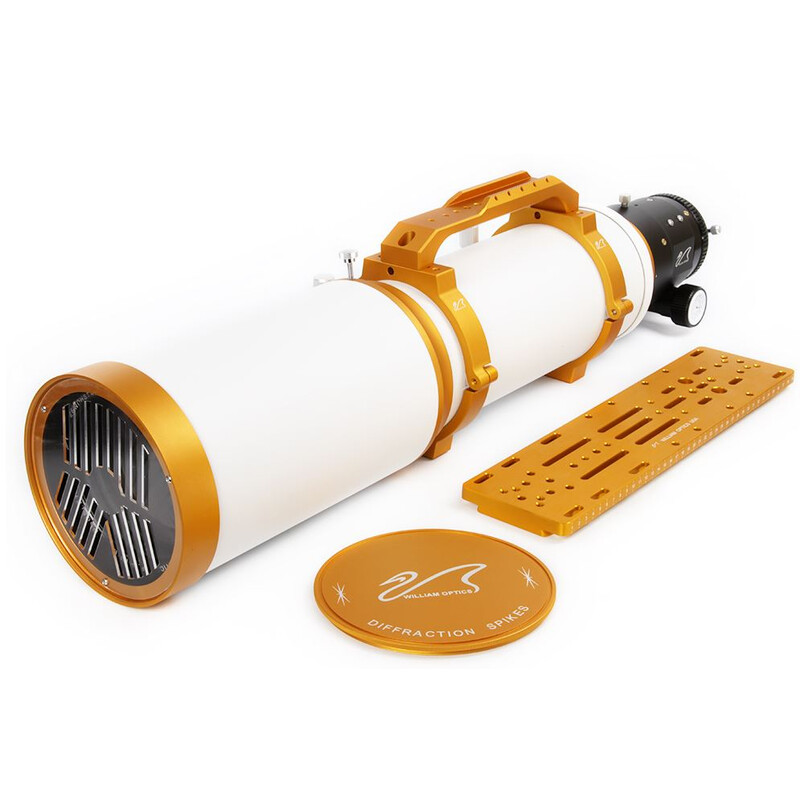

The Z126 Apo comes with a wide prism rail in accordance with the Losmandy standard. This provides greater stability compared to the narrower Vixen rail.

The ZenithStar 126 is a dream telescope for both visual and astrophotographic use. Expand it with the extensive range of accessories from William Optics to suit your needs!

A further special feature of the new William Optics apochromats is the specially calculated Bahtinov focus mask:

These new focus masks made from optical acrylic glass provide 92% transparency.

The imprinted pattern provides a diffraction structure which is around three times brighter than classic metal masks. The acrylic glass masks therefore produce a clearer diffraction pattern and enable focusing with the help of fainter stars.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Aperture (mm)
126
Focal length (mm)
970
Aperture ratio (f/)
7,7
Resolving capacity
1,1
Limit value (mag)
12,3
Light gathering capacity
320
Max. useful magnification
252
Coating
SMC multi-coating
Tube weight (kg)
9,9
Tube length (mm)
856
Carrying length (mm)
667
tube diameter (mm)
141
Stray light baffles in the OTA
yes
lens design
Doublet
Type of build
Apochromat

Focuser


Type of build
Gear rack
Rotating
yes
Ring clamp
yes
Gear reduction
1:10 fine focusing
Free aperture (mm)
84
Connection ( to eyepiece)
2

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Tube clamps
yes
Carrying handle
yes
Prism rail
Losmandy-Style
Miscellaneous
Bahtinov focus mask
Eyepiece adaptor
2" / 1.25"
Dew Shield
yes
Finder scope
no
Deviating optics
no

General


Series
ZenithStar
Colour
gold

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Telescope accessories > Prisms & Diagonal mirrors (4)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Transport & storage (5)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (5)

Omegon DUNEDRY dehumidifier

$ 29.90*
Eyepieces (4)
Eyepiece

Omegon LE Series Eyepiece, 14.5mm, 1.25''

$ 99.00*
Eyepieces (9)
Eyepiece

Omegon Eyepiece OGDO 4mm 80°

$ 299.00*
Eyepieces > Other (7)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Moon filters & Polarizing filters (4)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Filters > Nebulae filters (6)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (2)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Cameras (13)
Camera

Omegon Camera GUIDE 2000 C Color

$ 199.00*
Astrophotography > Camera adaptor (4)
Projection adapter

Omegon Camera adapter 1.25"

$ 24.90*
Astrophotography > Camera mounts (3)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Astrophotography > Other (2)
Guidescope

Omegon Guidescope module finder

$ 99.00*
Observatories (1)

Omegon Tent observatory

$ 175.00*
Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 26.90*
Solar Observation > Solar Filters (3)
Solar Filters

euro EMC SF100 size 6: 129mm to 157mm AstroSolar

$ 95.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Apochromatic refractor AP 126/970 ZenithStar 126 Gold OTA

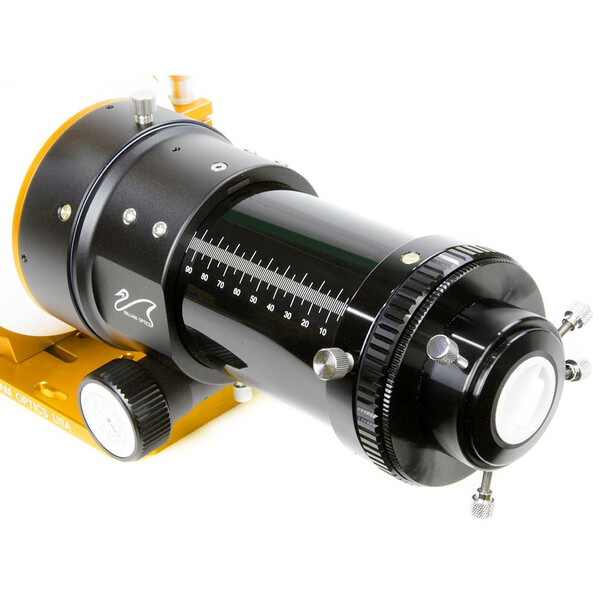

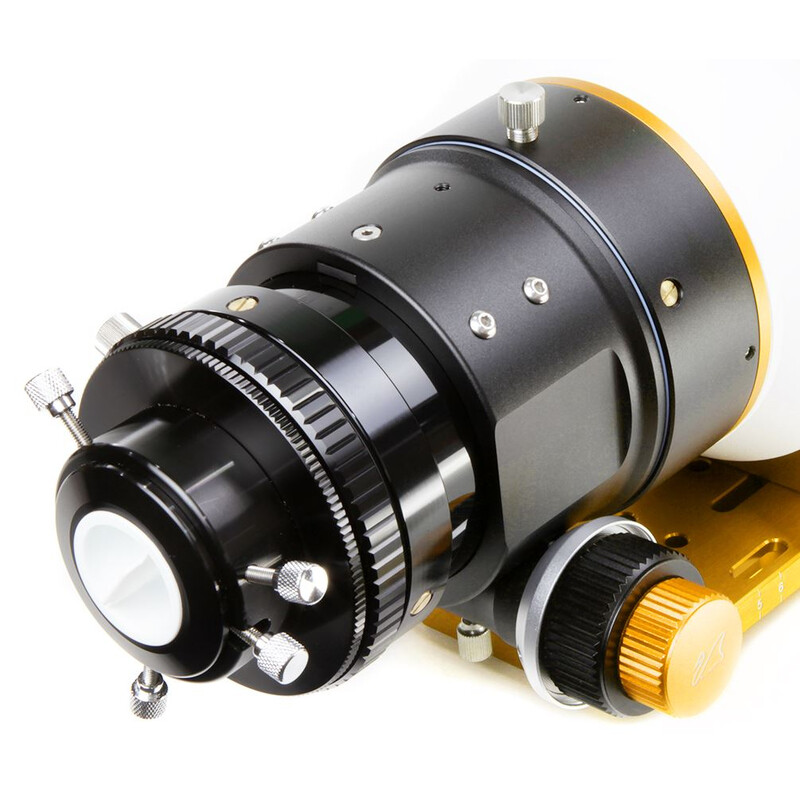

Focuser
Apochromatic refractor AP 126/970 ZenithStar 126 Gold OTA
Draw Tube Travel
Apochromatic refractor AP 126/970 ZenithStar 126 Gold OTA
Bahtinov focus mask
Apochromatic refractor AP 126/970 ZenithStar 126 Gold OTA
Example

Customer reviews

There are no customer reviews for this product yet.
