Telescopes > Meade > Meade Apochromatic refractor AP 80/480 ED LXD75 GoTo + Diagonals
Product no.: 16714

Apochromatic refractor AP 80/480 ED LXD75 GoTo + Diagonals

$ 1,370.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The optics Meade AP:

refracting telescopes with premium ED glass are renowned in astronomy for their excellent colour correction. The three-lens ED apochromats in Meade's 5000 series offer you the brilliant image sharpness and superior contrast of an ED apochromat at a fraction of the usual price. Even beginners will immediately notice the very high contrast and colour-free images.

Included in delivery with the telescope:

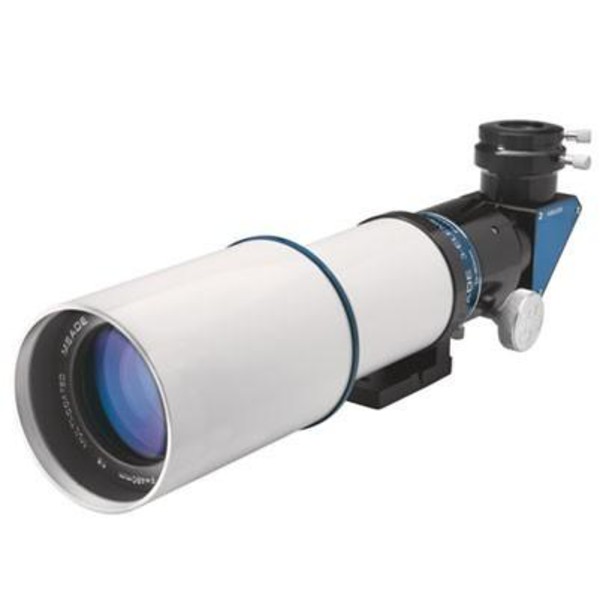

  • fully-coated Meade AP 80/480 OTA with 80mm aperture and 480mm focal length
  • completely retractable dew shield
  • aluminium Crayford focuser

In addition, a 2" star diagonal is included in this package.

The mounting LXD75:
Light and transportable, but already equipped with a Go To control, the LXD75 is ideal for the advanced entrancy in astronomy. First astro-photographic steps can be performed and developed. The mounting is already equipped with another engine in both axes, which update astronomic objects and positions them up to 4,5° per second. Accuracy-gear in both axes allows a handling with a minimum of work with all 9 tempi. The Auto Star Handbox with Go To- funktion controls the LXD75 exactly and safe. The mounting is photographically resilient up to 8 kg and already equipped with PEC (Periodic Error Control).

Specifications

Optics


Type
Refractor
Aperture (mm)
80
Focal length (mm)
480
Aperture ratio (f/)
6
Resolving capacity
1,44
Limit value (mag)
11,3
Light gathering capacity
130
Max. useful magnification
160

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Gear reduction
1:10 fine focusing

Mount


Mounting type
Equatorial
GoTo control
yes
Type of build
LXD75
Power supply
12
Power consumption (mA)
1200

GoTo control


Software
AutoStar #497
GoTo Language
German

Included accessories


Deviating optics
2", 90° star diagonal
Miscellaneous
Clamp collars, aluminium case

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
yes
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes

Product safety

Manufacturer: Meade Acquisition Corp. / Sea Freight, 89 Hangar Way, CA 95076 Watsonville, US, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
