Telescopes > Tecnosky > Tecnosky Apochromatic refractor AP 70/350 quadruplet AG OTA
Product no.: 57322

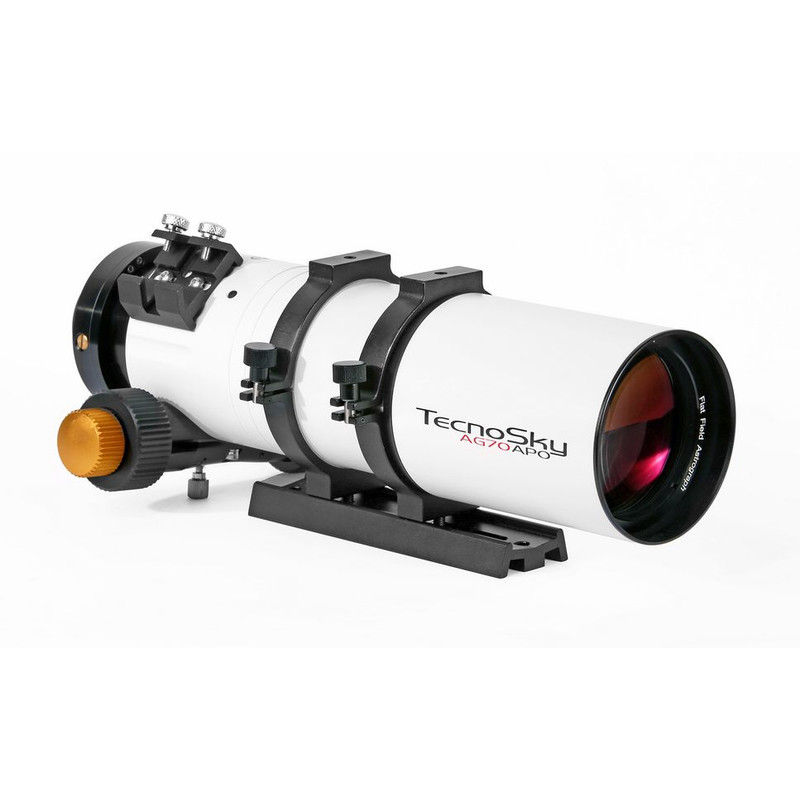

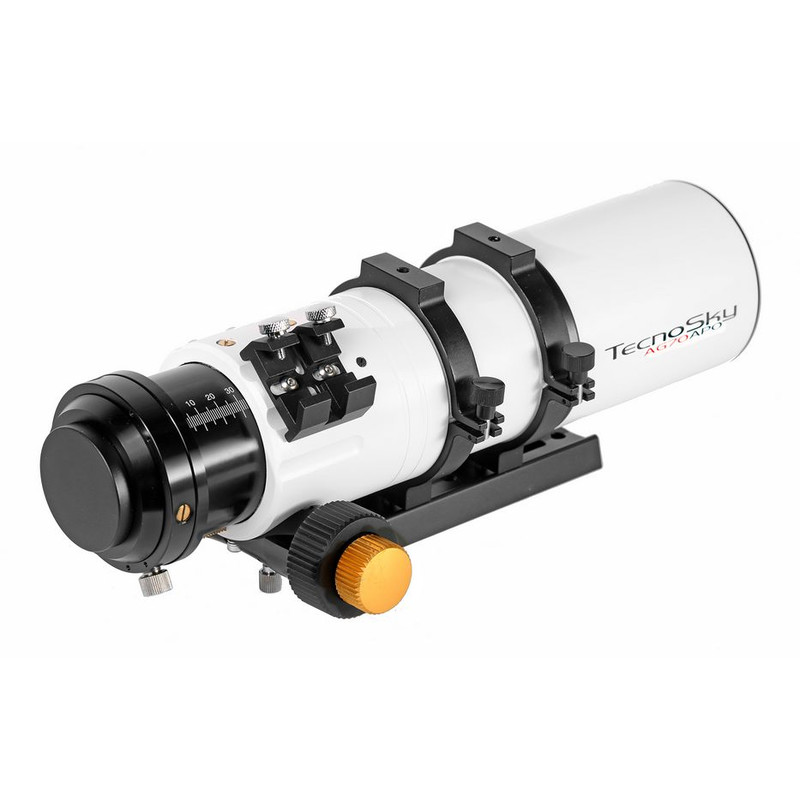

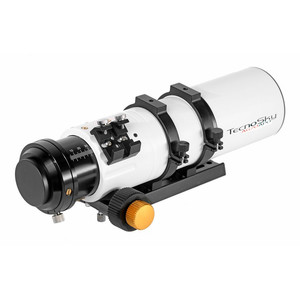

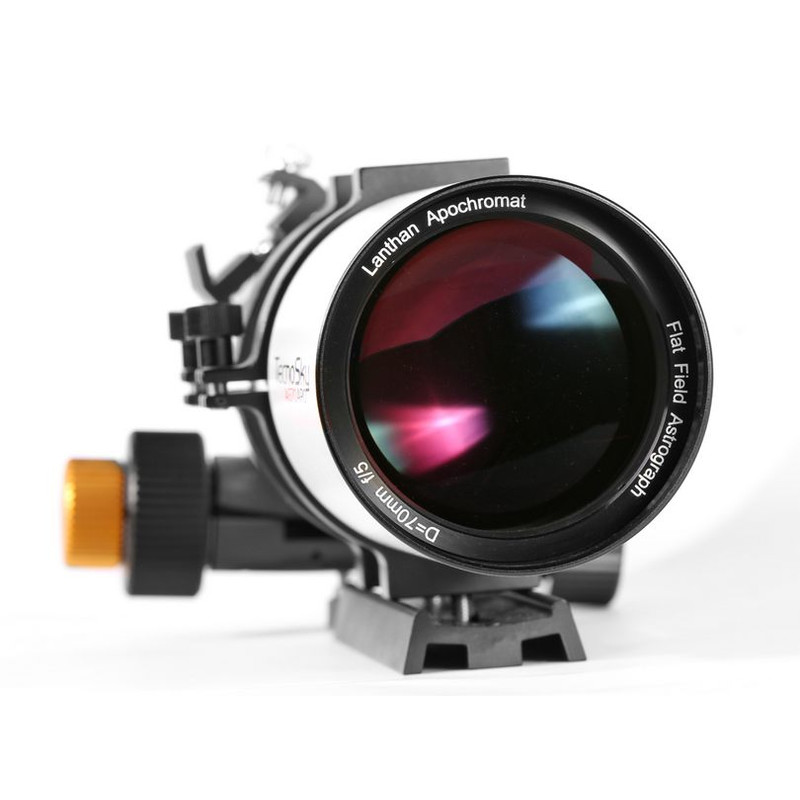

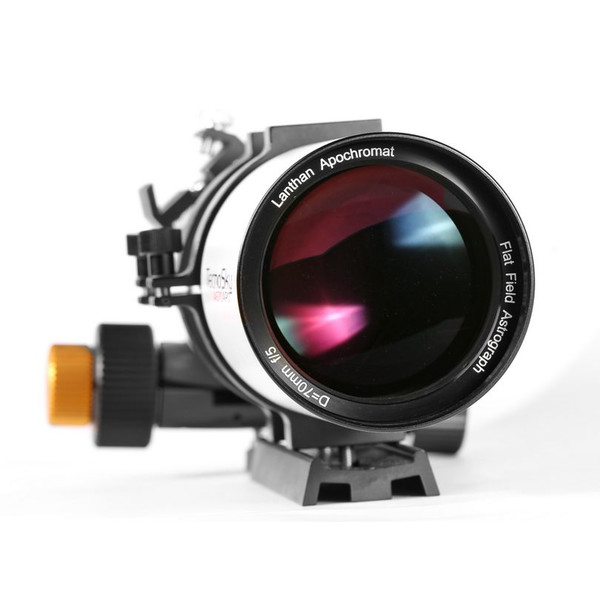

Apochromatic refractor AP 70/350 quadruplet AG OTA

$ 1,390.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The 70/350 Quadruplet AG70 enters the family of Tecnosky refractors ... in the best way! With 45mm corrected field, the AG70 is perfect for full frame cameras.

The AG70 is a Petzval with Lanthanum glass to guarantee a proper field of 45mm, totally free of color aberration and sharp to the edges! All optics are fully multiy coated. Despite being a very small and compact tube it is equipped with the new 2.5" R&P focuser that holds loads up to 3kg! The focus tube ends with a rotatable M48x0,75 thread. It weighs only 2.1 kg including tuberings!

Technical features:

  • Petzval quadruplet 70/350mm
  • BFMC anti-reflective coating
  • Lanthanum glass
  • Weight 2.1kg with rings and vixen bar
  • Focuser R&P 2.5” magnesium micrometric with reduction 1:10
  • Offsettable rotator M48x0,75
  • Correct field greater than 45mm

Including:

  • AG70 Petzval refractor
  • Tuberings and dovetail (Vixen style)

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
71
Focal length (mm)
347
Aperture ratio (f/)
4,9
Resolving capacity
1,62
Limit value (mag)
11,1
Light gathering capacity
100
Max. useful magnification
142
Tube length (mm)
325
Tube material
Aluminium
Coating
multiple
Tube weight (kg)
2,05
Tube construction
Full tube
lens design
Quadruplet

Focuser


Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M48
Backfocus (mm)
75
Type of build
Gear rack
Free aperture (mm)
64
Load capacity (kg)
5
Gear reduction
1:10 Fine movement

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Thread for camera tripod
yes
Prism rail
Vixen-Style
Tube clamps
yes
Transport cases
no
Dew Shield
yes
Deviating optics
no
Finder scope
no
Corrector
integrated

Area of application


Astrophotography
yes (very good)
Nature Observation
no
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no
