Telescopes > Omegon > Pro APO > Omegon Apochromatic refractor Pro APO AP 140/910 Triplet ED FCD-100
Product no.: 69872

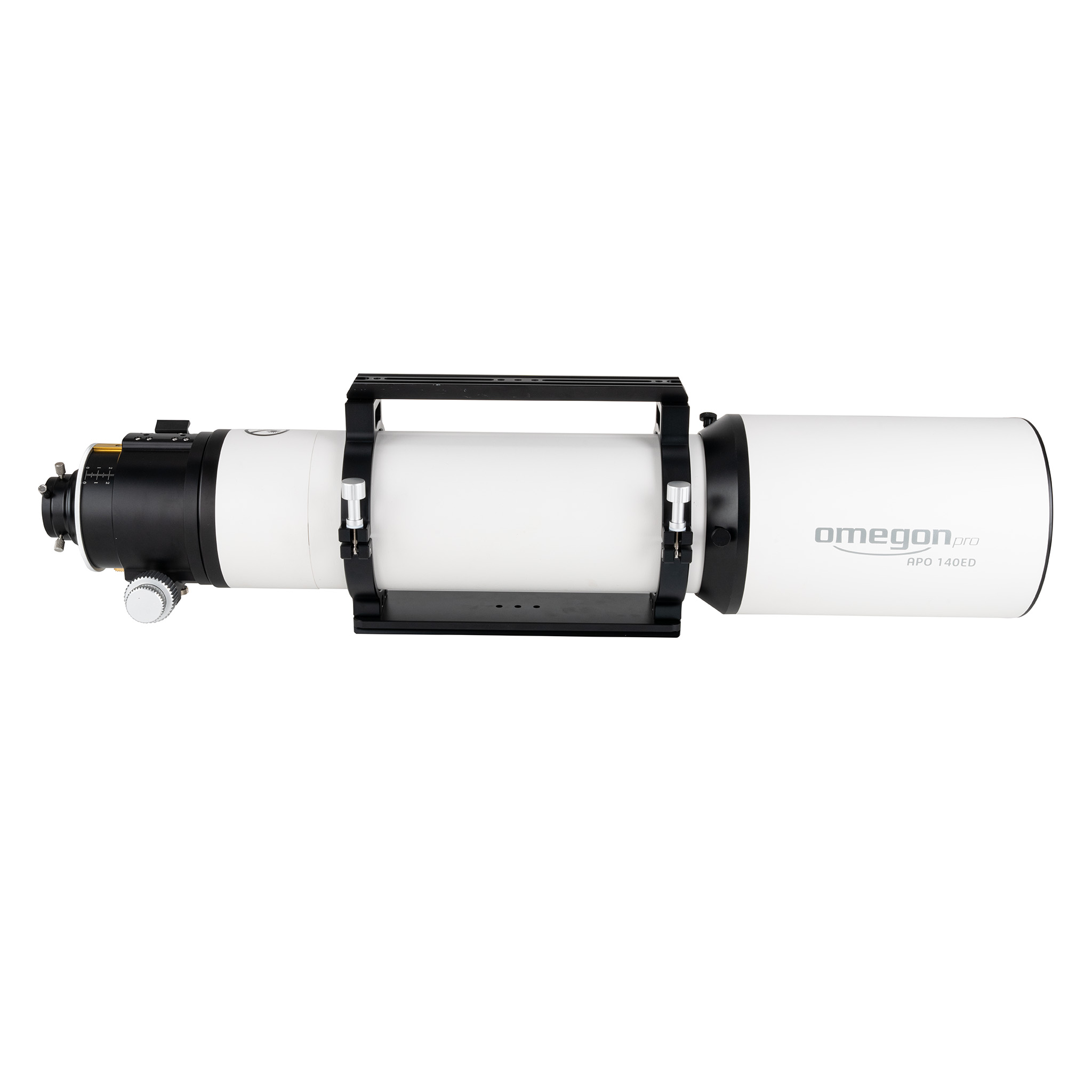

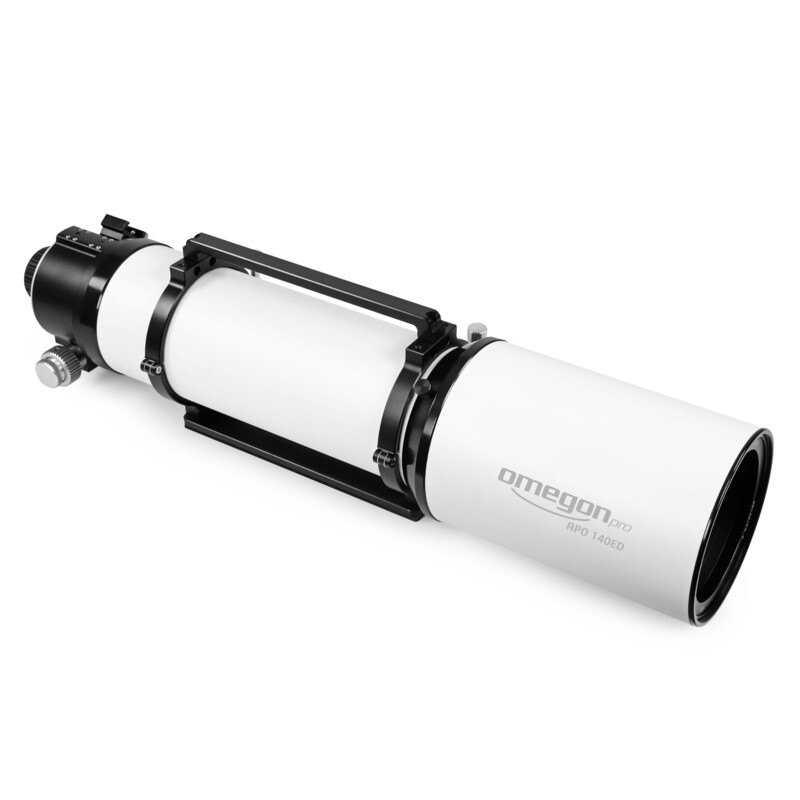

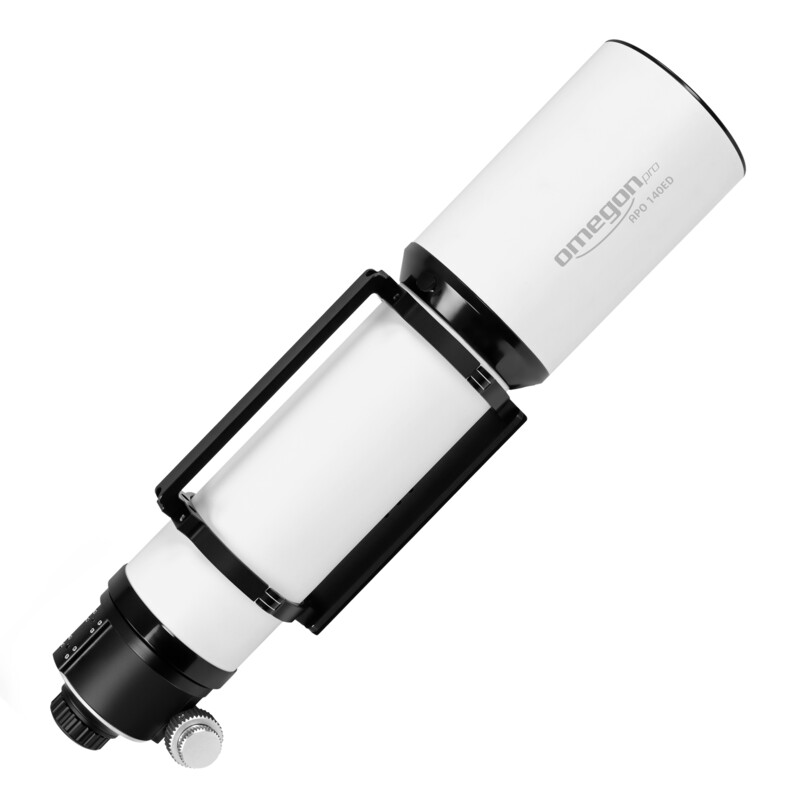

Apochromatic refractor Pro APO AP 140/910 Triplet ED FCD-100

$ 4,490.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Product description

More about the series Pro APO...

Large aperture for the small home observatory
The Omegon 140mm apochromat is a telescope for astrophotographers and visual observers who are looking for the highest image quality of a large instrument.
Thanks to the size of its optics, it collects a lot of light and is ideal for small observatories or amateur astronomers with a fixed observing location. If you are not afraid of larger equipment, then this telescope will deliver wonderful astronomy photos from locations with low light pollution. The higher resolution also makes this telescope an expert for close binary stars. High-contrast visual deep sky observation is also particularly successful with its 140 f/6.5 optics.
The triplet lens is particularly sharp and incorporates high-quality ED FCD100 glass manufactured by Hoya in Japan, featuring extremely high colour fidelity, which enables pin-sharp planetary observations and impressive astronomy photos.

The highlights at a glance:

  • Triplet APO objective with FCD100 ED lens: high-quality apochromatic lens with a true-colour and high-contrast image
  • Internal baffles prevent reflections to ensure even better contrast both for observing and astrophotography
  • 3.5-inch hybrid focuser with 1:10 reduction: you can attach heavy accessories weighing up to 10kg
  • They have thought of everything: this telescope comes with CNC tube clamps, GP level mounting rail, finderscope shoe and pull-out dew shield. A telescope for astrophotographers that's ready to go!

Designed for perfect astronomy photos
This apochromat features the best that technology has to offer, the image is nothing less than outstanding. Thanks to the ED Triplet Apo lens with air gap, it delivers a particularly high-contrast and true-colour image. At the heart of your astrophotography workhorse is FCD100 glass from Hoya in Japan, which is known for its high colour fidelity. Enjoy nebulae and planets at very high magnification: even then, the image remains clear and sharp.
A telescope for all astronomy enthusiasts who value high image quality.

More about FCD100:
Hoya has successfully optimised the mass production of FCD100, thanks to technological innovation. An optical glass with an extremely low dispersion, which is equivalent to fluorite. By combining it with high refractive index optical glass, it has been possible to achieve innovative and unrivalled chromatic aberration correction.

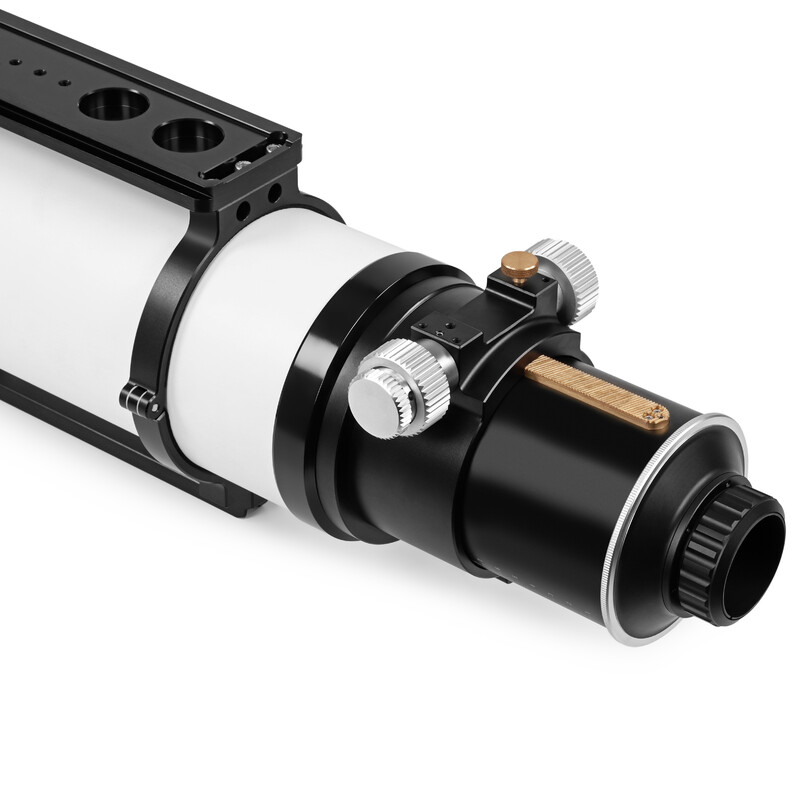

3.5" focuser for full-frame sensors

With this huge focuser, all your problems are a thing of the past - at least those connected to the illumination of your camera. This is because you can use any camera from APS-C to full-frame and get perfect results thanks to the interplay between the objective lens and focuser.
The focuser works on the basis of a hybrid technology comprising a rack (angled grooves) and ball bearings. This means: focusing is completely smooth and accurate, but the load-bearing capability and stability is high. You can even attach heavy cameras and equipment weighing up to 10kg.

M63 thread connection (internal): besides the classic 2-inch (with 1.25-inch reducer adapter) connection for eyepieces and cameras, this instrument also includes a 63mm thread, so you can easily and stably attach a flattener or reducer.

The dual-purpose handle
Simply clever: with the practical carrying handle, your APO is always safe in your hands. Whether during transport or when attaching it to a mount. The handle also serves as a mounting rail for accessories attached in parallel. Everything has its place: you could use e.g. a guide scope and guide camera.

Scope of delivery:

  • Apochromat 140/910 in triplet design with Hoya ED glass in adjustable lens mount
  • CNC tube clamps with 1/4-inch camera thread
  • Tube with extendable dew shield (outer diameter 145mm)
  • Carrying case
  • Finder scope adapter
  • 2-inch/1.25-inch reducer adapter

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
140
Focal length (mm)
910
Aperture ratio (f/)
6,5
Resolving capacity
0,82
Limit value (mag)
12,5
Light gathering capacity
400
Max. useful magnification
280
lens design
Triplet
Glass material
HOYA FCD-100
Tube weight (kg)
10,5
Tube length (mm)
850
Tube material
Aluminium
Coating
FMC
Stray light baffles in the OTA
yes
dew cap diameter (mm)
182

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M63x1 (f)
Ring clamp
yes
Load capacity (kg)
10
Gear reduction
1:10 Fine movement

Mount


Mounting type
no mount

Included accessories


Corrector
without
Prism rail
Losmandy-Style
Carrying handle
yes
Transport cases
yes
finder base
Vixen/Skywatcher Level
Tube clamps
yes

General


Series
Pro APO

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
not recommended
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Recommended accessories

Telescope accessories > Prisms & Diagonal mirrors (4)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Transport & storage (6)
Carry case

Omegon carry case for 5" tubes/lenses

$ 99.00*
Telescope accessories > Other (8)

TS Optics Flattener/Reducer 0.92x

$ 650.00*
Eyepieces (4)
Eyepiece

Omegon Eyepiece LE Planetary 18mm 1,25''

$ 149.00*
Eyepieces (4)
Eyepiece

Omegon Ultra Wide Angle eyepiece 9mm 1,25"

$ 69.00*
Eyepieces > Other (2)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Nebulae filters (8)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (4)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Astrophotography > Camera adaptor (4)
Projection adapter

Omegon Camera adapter 1.25"

$ 24.90*
Astrophotography > Camera mounts (4)

Omegon Easypic Universal Smartphone Adapter

$ 129.00*
Astrophotography > Other (3)
Camera

Lacerta Camera Standalone Autoguider MGEN Version 3

$ 1,010.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 18.90*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 31.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Omegon Apochromatic refractor Pro APO AP 140/910 Triplet ED FCD-100

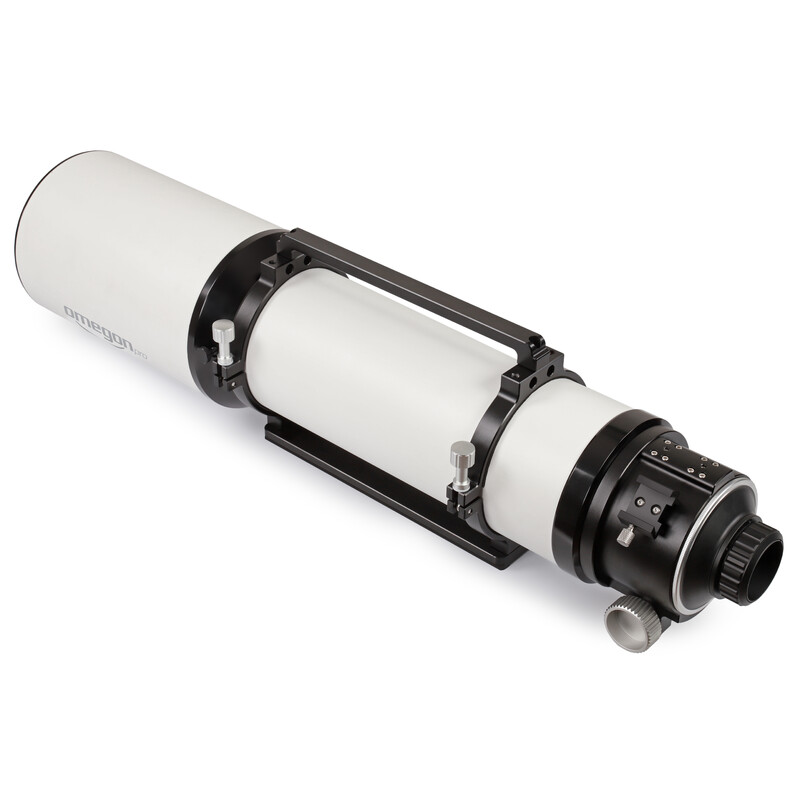

The handle of the 140mm APO also acts as a secure mount connection.
Omegon Apochromatic refractor Pro APO AP 140/910 Triplet ED FCD-100

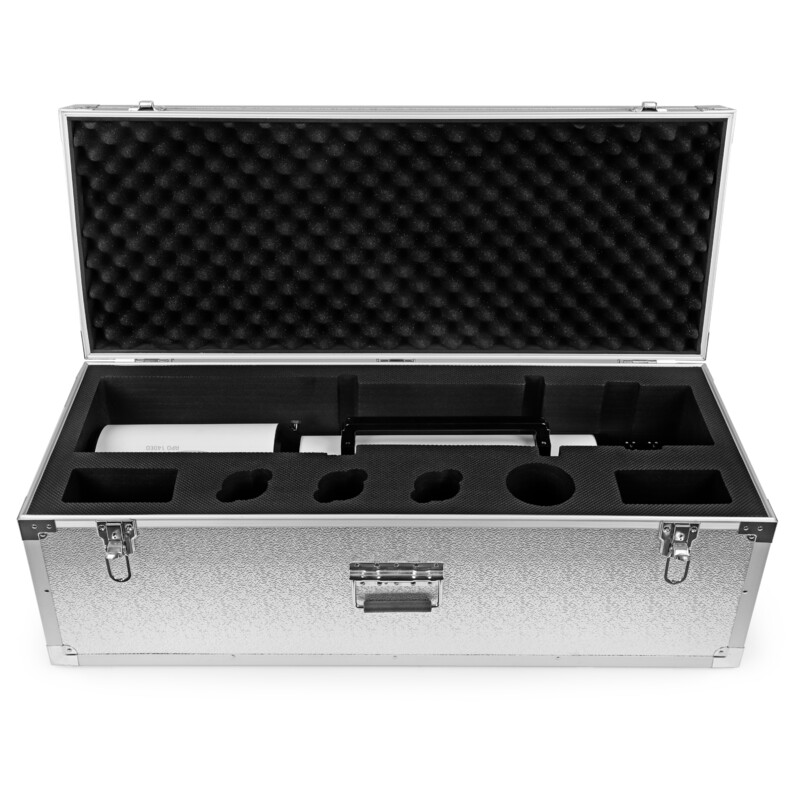

A sturdy carrying case ensures that your valuable optics are stored with care.
