Telescopes > TS Optics > Imaging Star > TS Optics Apochromatic refractor AP 100/580 Quadruplet Apo Imaging Star OTA
Product no.: 50205

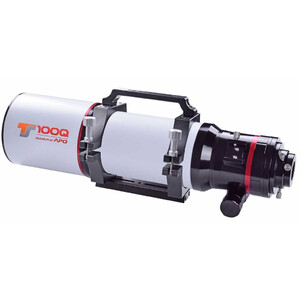

Apochromatic refractor AP 100/580 Quadruplet Apo Imaging Star OTA

$ 2,990.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
Product questions?
advice for Telescopes

Product description

An apochromat with well corrected field for astrophotography - extremely high image quality in the field and, of course, also on the axis.

  • True apo with excellent Triplet FPL53 objective (glass from Ohara, Japan)
  • Integrated flattener with optimized distance to the objective for optimal sharpness in the field

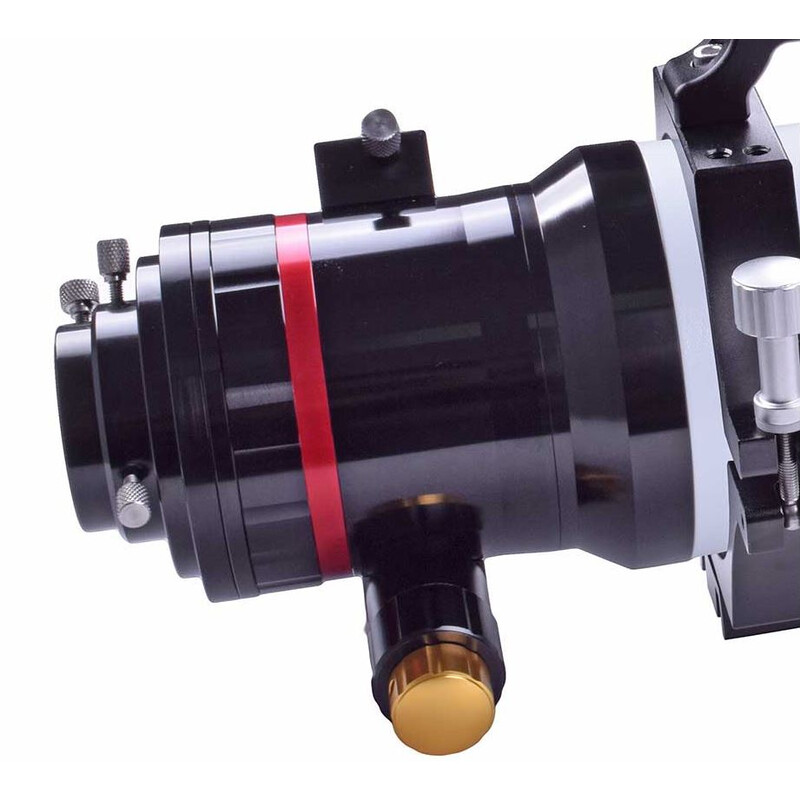

  • 3" CNC Rack and Pinion Focuser - comparable with Feather Touch from Starlight - holds up to 6 kg
  • The system is free from reflexes.
  • Objective and corrector are adjustable, the are shipped perfectly adjusted.
  • We check each telescope before we send it out to you.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics

Type
Refractor
Type of build
Apochromat
Aperture (mm)
100
Focal length (mm)
580
Aperture ratio (f/)
5,8
Resolving capacity
1,15
Limit value (mag)
11,8
Light gathering capacity
200
Max. useful magnification
200
Tube weight (kg)
5,3
Tube length (mm)
590
Carrying length (mm)
490
Tube material
Aluminium
Tube construction
Full tube
lens design
Triplet
Fully Corrected Field (mm)
49

Focuser

Type of build
Gear rack
Load capacity (kg)
8
Gear reduction
1:10 Fine movement
Adjustment range (mm)
46
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M82
Free aperture (mm)
102

Mount

Type of build
OTA
Mounting type
no mount

Included accessories

Corrector
integrated

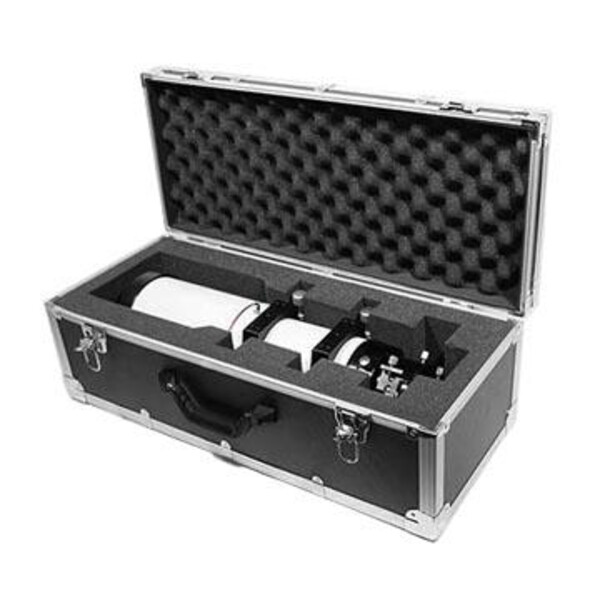

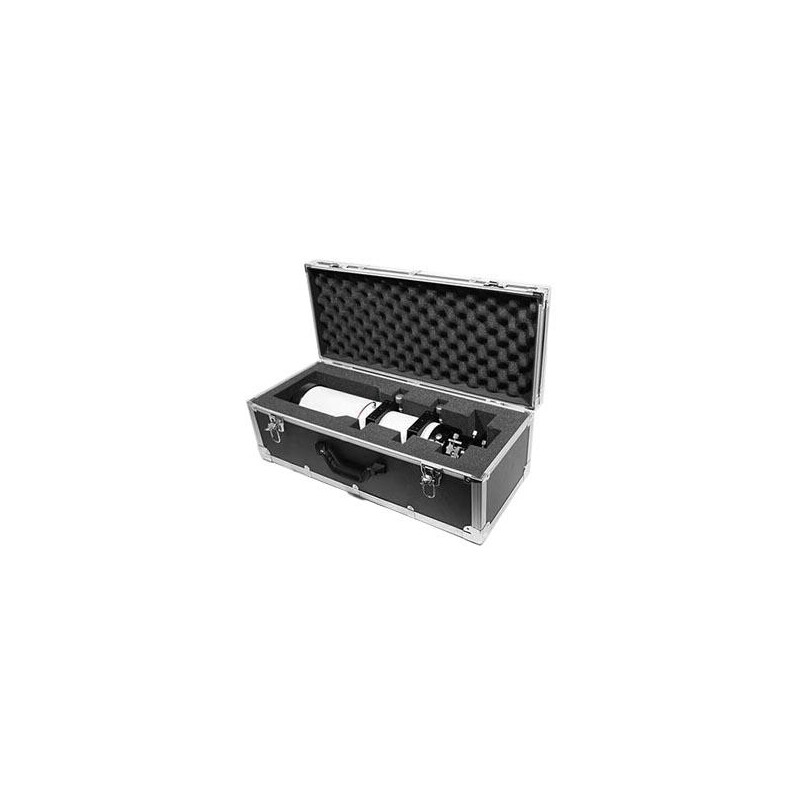

Transport cases
yes

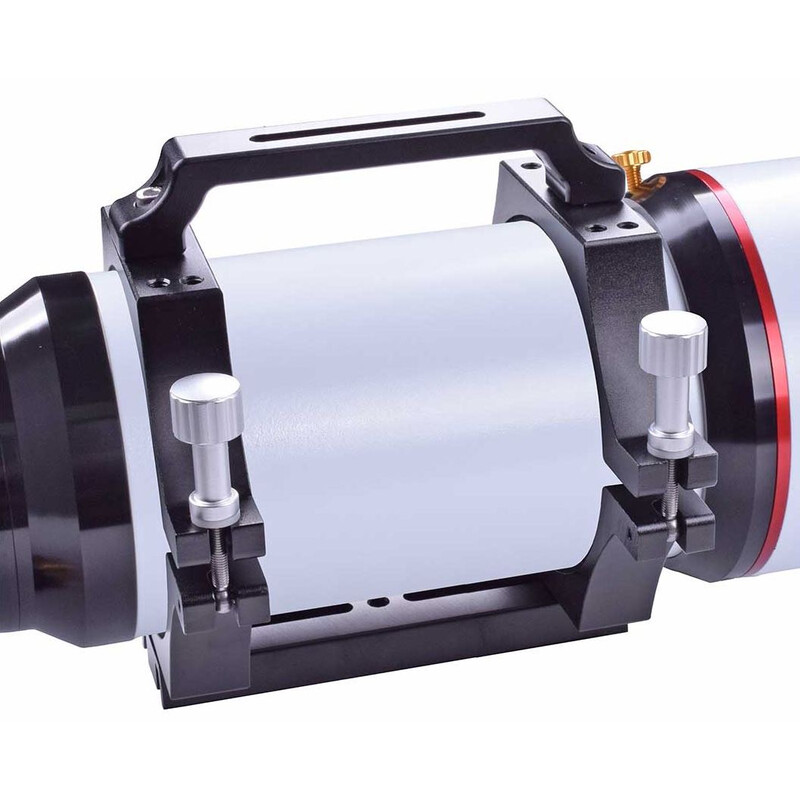

Tube clamps
yes

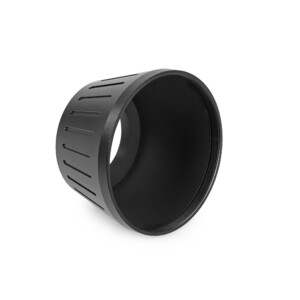

Dew Shield
yes
Eyepiece adaptor
1,25" - 2"
Deviating optics
no
Finder scope
no
Prism rail
Vixen-Style
finder base
Vixen/Skywatcher Level

General

Series
Imaging Star
Total weight (kg)
8,8

Area of application

Astrophotography
yes
Moon & Planets
yes
Nature Observation
yes
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for

Beginners
no
Advanced
yes
Observatories
no
