Telescopes > TS Optics > CF-APO > TS Optics Apochromatic refractor AP 155/1240 CD-APO Deluxe OTA
Product no.: 70610

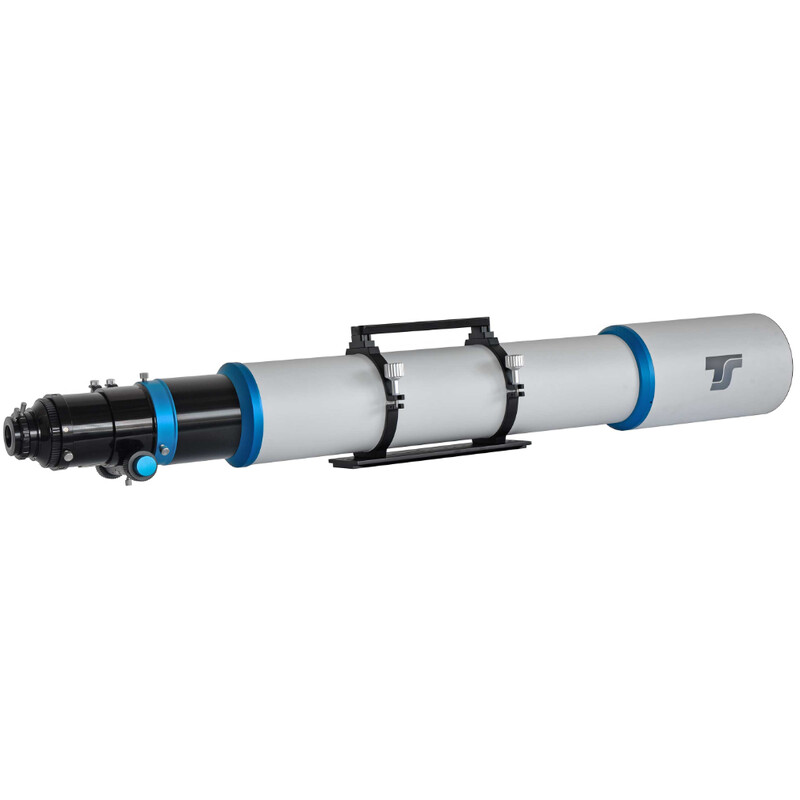

Apochromatic refractor AP 155/1240 CD-APO Deluxe OTA

RRP: $ 5,600.00 Our price:
$ 5,200.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Product description

In short:

  • Large refracting telescope with 155mm aperture
  • First-class colour correction thanks to FPL55 triplet lens
  • Multi-coating on every glass-to-air surface
  • Internal screens to prevent scattered light
  • 3.7" R&P focuser with M63 and M92 connection

The TS Optics AP 155/1240 is amongst the largest refracting telescopes on the market. An exceptional refracting telescope which can provide a lifetime’s worth of joy and will enhance any observatory!

  • The apochromatic triplet lens with an FPL55 element and additional Lanthanium special glass displays pinsharp stars and bright planets without colour fringing.
  • Multi-coating on every glass-to-air surface for maximum transmission, internal screens within the lens tube prevent scattered light
  • The improved lens mount keeps its alignment perfectly featuring traction and pressure screws.
  • Despite its large aperture, the apochromat is relatively lightweight and can be mounted on a Skywatcher EQ-6 or iOptron GEM45, for example.
  • Every apochromat comess with a manufacturer’s test certificate. The apochromat is given a serial number. Furthermore, every apochromat is tested on the optical bench and optimally collimated.

3.7” rack and pinion focuser: The large focuser is optimised for photography and carries loads up to 8 kg - fully sufficient for heavy cameras with accessories! There are also multiple internal threads available for screw-on adaptations, in particular for the recommended flattener. The focuser also rotates by 360° in order to select the correct field of view.

Astrophotography: The apochromat can be paired with all suitable correctors. We recommend the ]: This corrector screws directly onto the focuser’s M92 thread. The corrector provides illumination and correction up to an image circle diameter of 60 mm. The focal length remains unaltered.

Includes:

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

Specifications

Optics


Type
Refractor
Type of build
Apochromat
lens design
Triplet
Aperture (mm)
155
Focal length (mm)
1240
Aperture ratio (f/)
8
Resolving capacity
0,89
Limit value (mag)
12,8
Light gathering capacity
490
Max. useful magnification
310
Tube weight (kg)
13
tube diameter (mm)
156
Carrying length (mm)
1145
Coating
FMC
Stray light baffles in the OTA
yes
dew cap diameter (mm)
186

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M92, M63
Backfocus (mm)
140
Free aperture (mm)
94
Motorized
no
Ring clamp
yes
Load capacity (kg)
8
Gear reduction
yes
Adjustment range (mm)
100
Rotating
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Deviating optics
no
Corrector
without
Prism rail
Losmandy-Style
Carrying handle
yes
Transport cases
yes
finder base
Vixen/Skywatcher Level
Eyepiece adaptor
1,25" - 2"

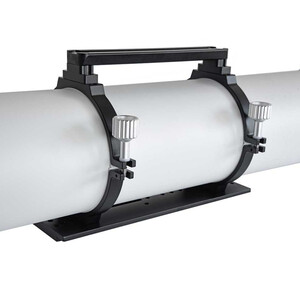

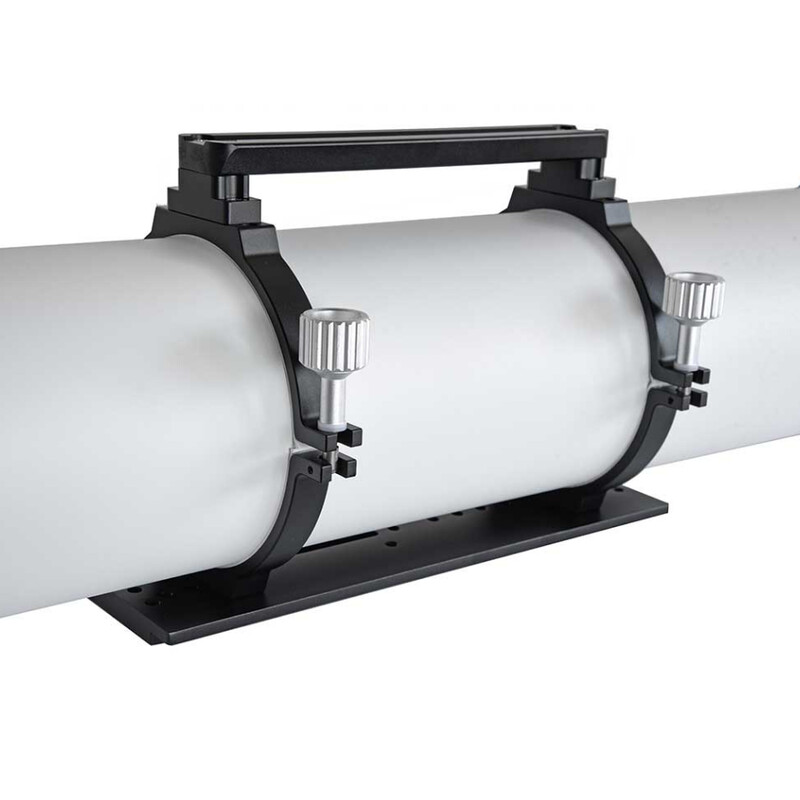

Tube clamps
yes
Test protocol
yes

General


Series
CF-APO

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
yes

Recommended accessories

Telescope accessories > Prisms & Diagonal mirrors (4)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Transport & storage (5)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (8)
Finder

Omegon Radiant Finder with fastener

$ 49.90*
Eyepieces (3)
Eyepiece

Omegon SWA 38mm eyepiece, 2”

$ 179.00*
Eyepieces > Other (4)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Nebulae filters (6)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (4)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Camera adaptor (3)
Camera adaptor

Omegon Camera adaptor T2-Ring compatible with Canon EOS

$ 19.90*
Astrophotography > Other (3)

TS Optics Flattener 1.0x M92

$ 479.00*
Mountings & accessories (2)
Mount

iOptron Mount GEM45 GoTo LiteRoc

$ 3,360.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor > Lamps (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy (2)
Filters

Omegon Filters Variable grey filter 1.25"

$ 34.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 18.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

TS Optics Apochromatic refractor AP 155/1240 CD-APO Deluxe OTA

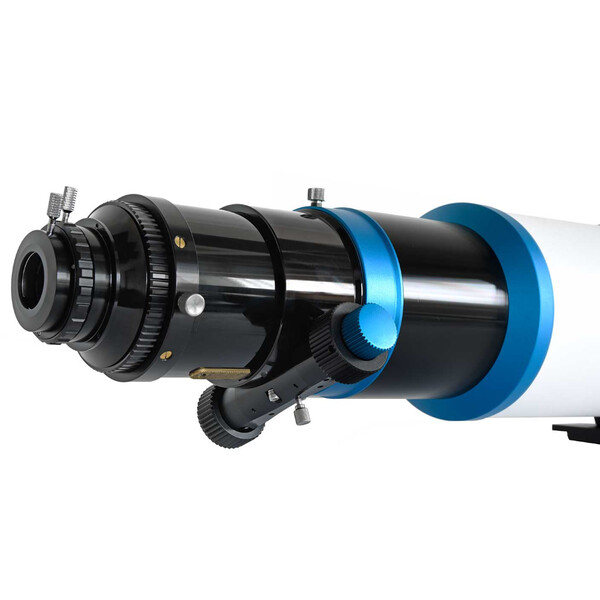

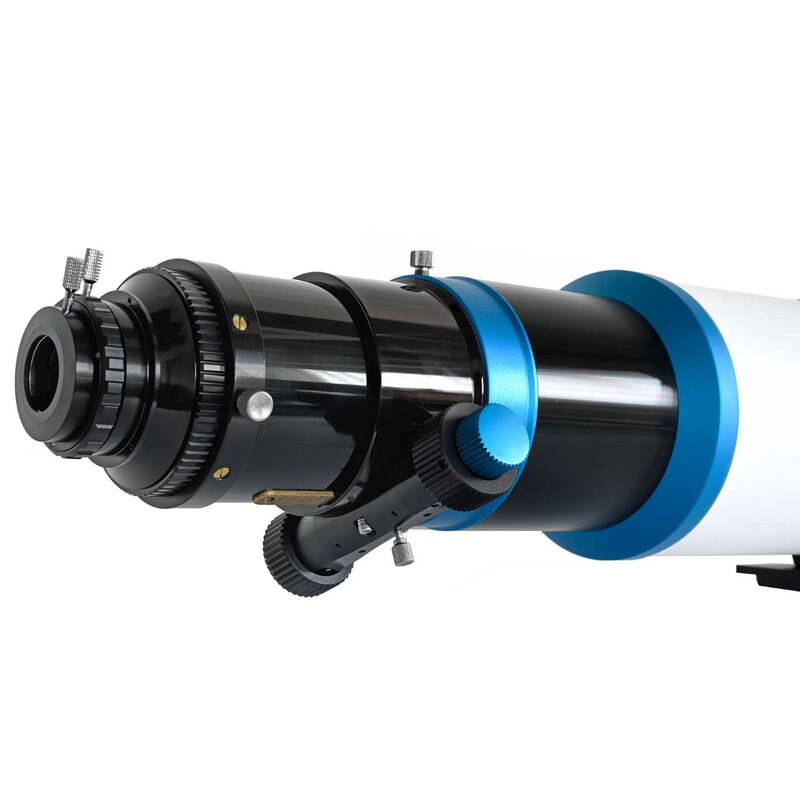

Drawtube
TS Optics Apochromatic refractor AP 155/1240 CD-APO Deluxe OTA

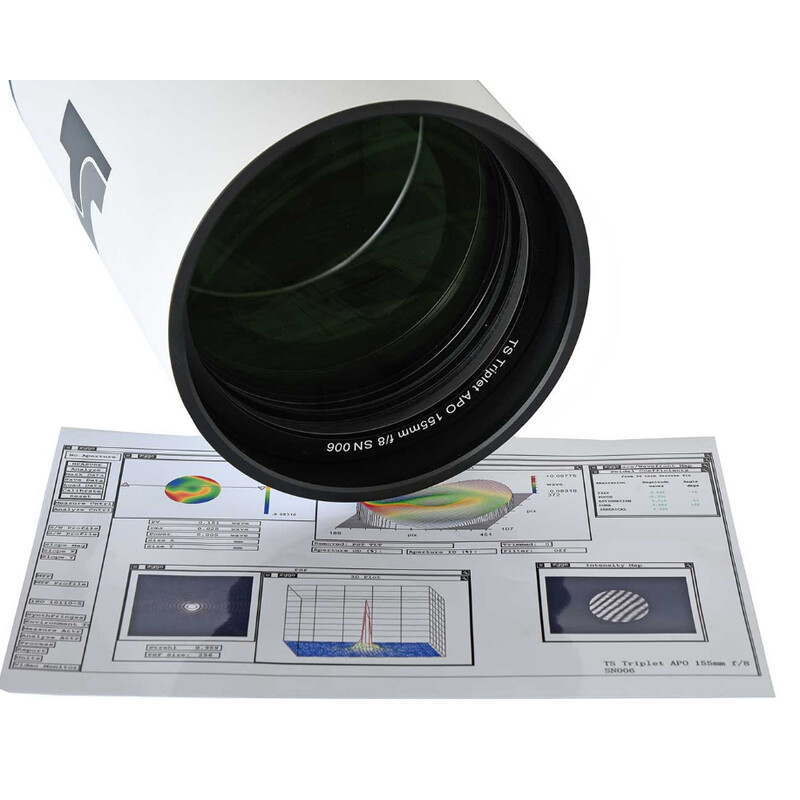

Test protocol
TS Optics Apochromatic refractor AP 155/1240 CD-APO Deluxe OTA

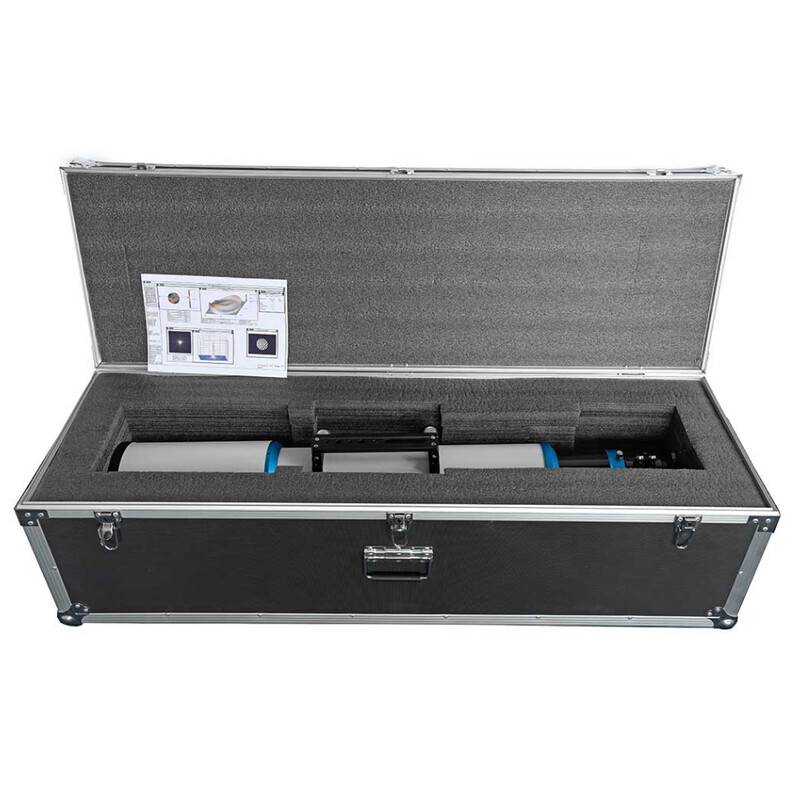

Transport cases
