Your partner for astronomy
Telescopes > TS Optics > Photoline > TS Optics Apochromatic refractor AP 80/560 Photoline OTA
Product no.: 52328

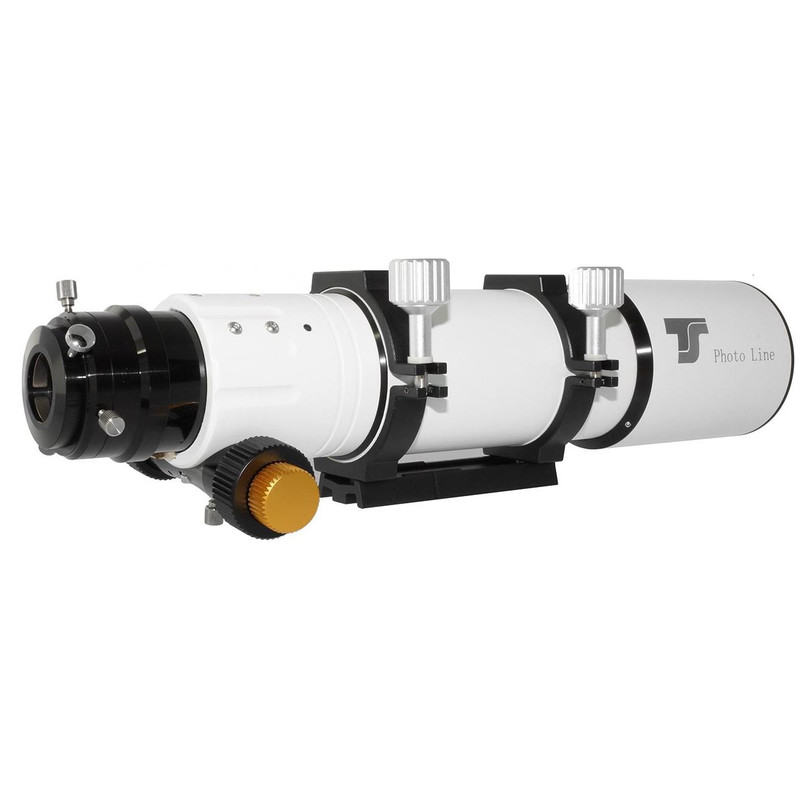

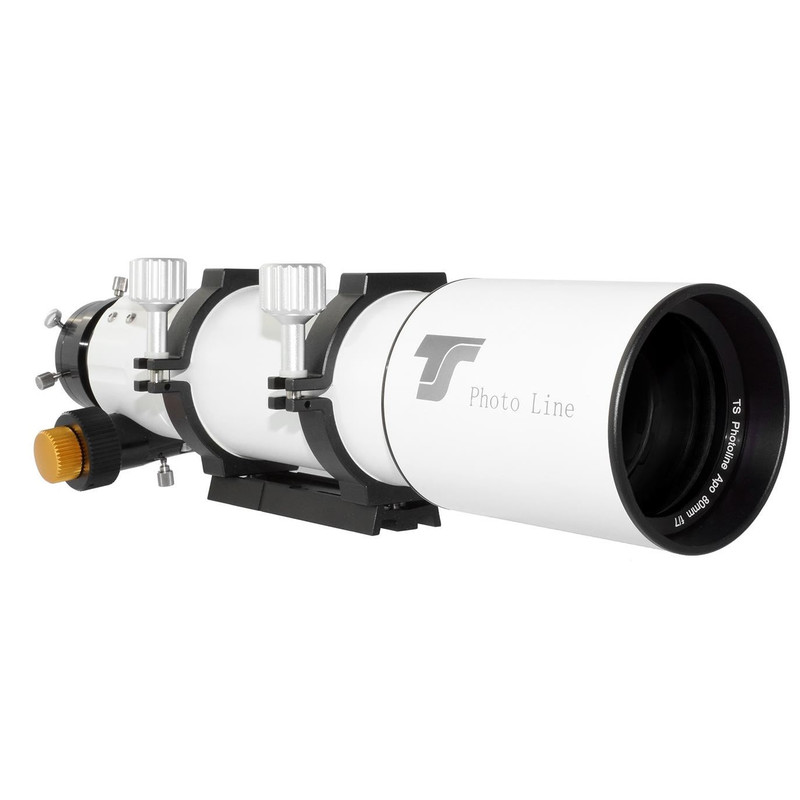

Apochromatic refractor AP 80/560 Photoline OTA

RRP: $ 980.00 Our price:
$ 810.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Product description

The new Photoline Apo from TS Optics offers excellent performance in all areas of observation and astrophotography.
The image quality sets new standards in this class. The objective lens is made from FPL53 "extra-low dispersion" glass from Ohara, Japan. This high-quality apochromatic element and the relaxed aperture ratio of f/7 allow for virtually colour-free imaging. The doublet lens also allows for faster cooling.

The advantages and features at a glance:

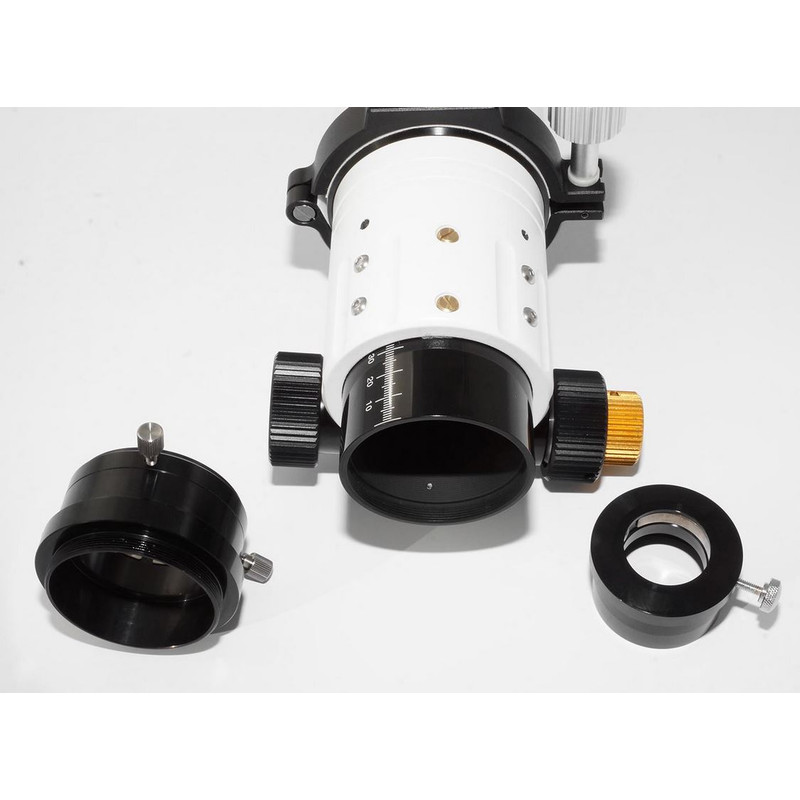

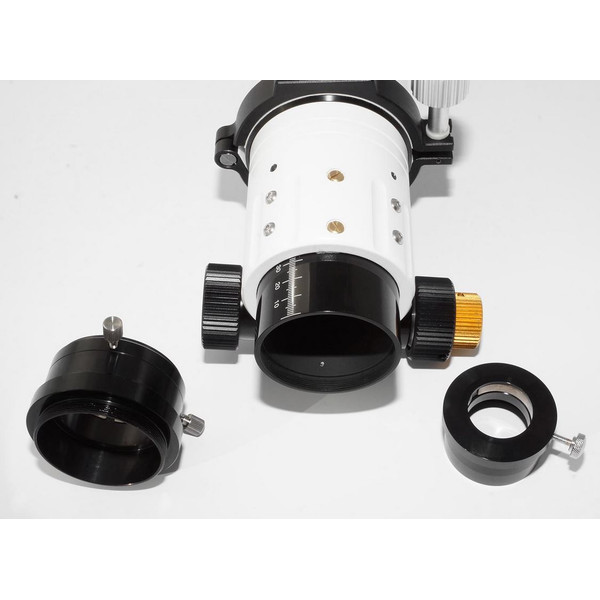

  • Ball bearing focuser with rack and pinion adjustment. The bearing is decoupled from the adjustment of the focuser tube.
  • Oversized extension tube with 60 mm free aperture for full illumination even with full-frame cameras.
  • 1:10 micro reduction for ultra-precise focusing
  • High-quality CNC tube with internal baffles and excellent internal blackening – no annoying stray light
  • M63x1 internal thread allows stable screw-in adaptations for astrophotography
  • The dew shield can be inserted - the transport length is then only 46 centimetres
  • Modern, multi-coated 2-element lens with FPL53 as APO element
  • High-quality CNC clamps and GP-level prism rail with photo tripod connection

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
80
Focal length (mm)
560
Aperture ratio (f/)
7
Resolving capacity
1,73
Limit value (mag)
11,3
Light gathering capacity
130
Max. useful magnification
160
Coating
multiple
Tube material
Aluminium
Tube weight (kg)
3,1
tube diameter (mm)
89
Tube length (mm)
460
Stray light baffles in the OTA
yes
Tube construction
Full tube
lens design
Doublet

Focuser


Backfocus (mm)
123
Type of build
Gear rack
Free aperture (mm)
64
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M63x1
Gear reduction
1:10 fine focusing

Mount


GoTo control
no
Mounting type
no mount
Type of build
OTA

Included accessories


Prism rail
Vixen-Style
Tube clamps
yes
Transport cases
no
Dew Shield
yes
Deviating optics
no
Finder scope
no
Eyepiece adaptor
2" / 1.25"
Corrector
without

General


Series
Photoline

Area of application


Astrophotography
yes
Nebulae & galaxies
yes
Nature Observation
no
Moon & Planets
yes

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de
