Telescopes > TS Optics > Photon > TS Optics Telescope N 200/1000 Carbon Photon OTA
Product no.: 76751

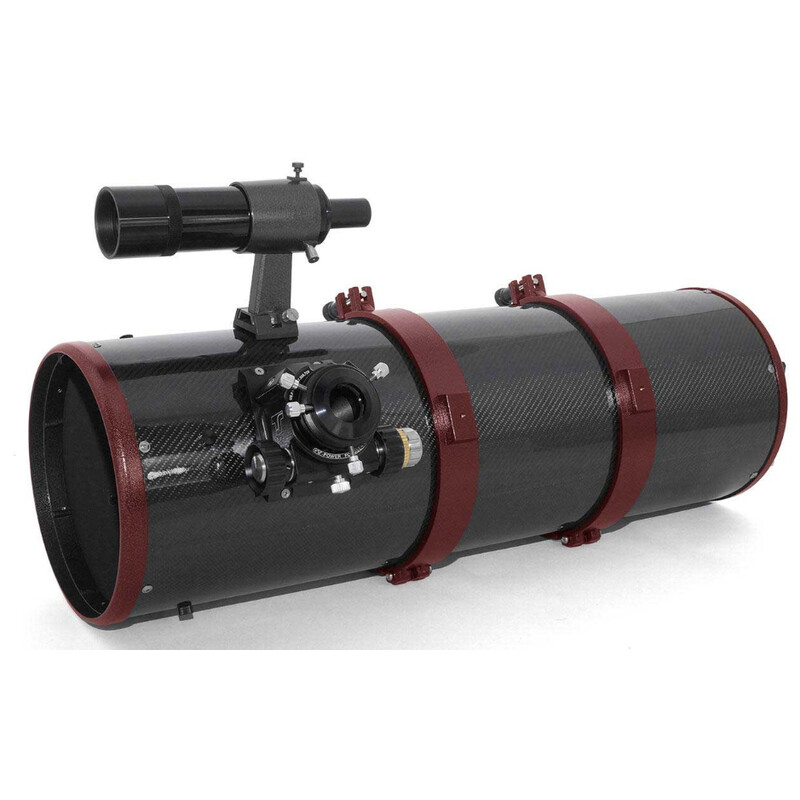

Telescope N 200/1000 Carbon Photon OTA

$ 1,550.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Product description

More about the series Photon...

The N 200/1000 telescope - The 200mm aperture allows the observer to see a wealth of detail when deep sky observing. With 78% more light available than a 150mm telescope even the delicate spiral arms of many galaxies and structures in nebulae may be observed. Even globular clusters, such as the famous M13 cluster in Hercules, can be clearly resolved right out to the edge.

The main parabolic mirror is diffraction-limited, providing a sharp image. The very high-contrast image provided by the optics is optimized by use of a small secondary mirror and thin secondary mirror vanes. This also means that equally sharp and bright planetary observing is possible at higher magnifications.

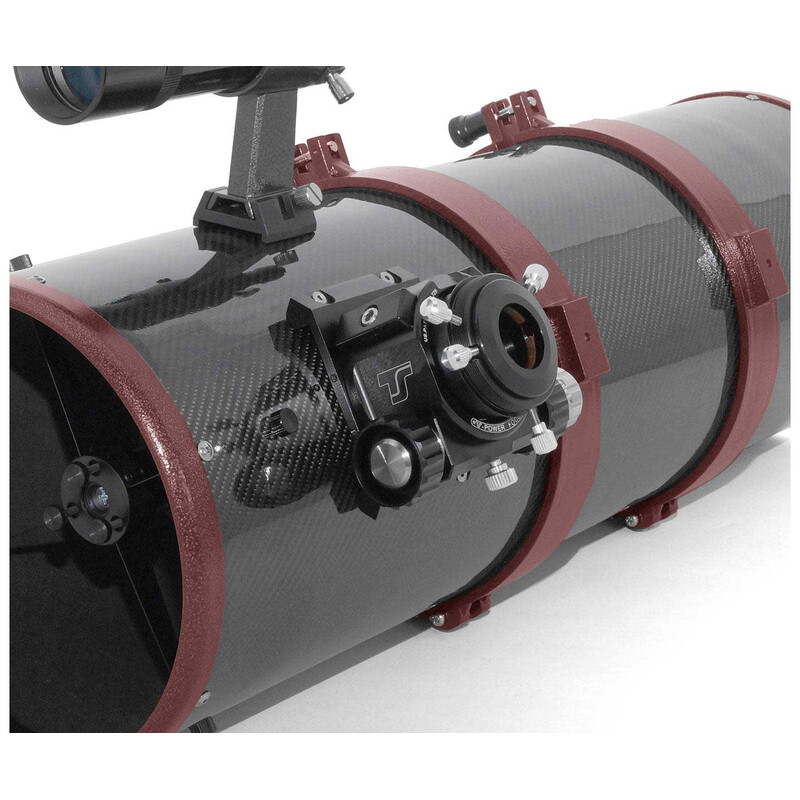

The robust focuser allows the use of two inch eyepieces, and an adapter is included to allow 1.25" eyepieces to be used. Two of these eyepieces are included with the telescope, allowing you to get started observing right away.

The telescope has an aperture ratio of f/5, making this telescope a member of the of the 'fast Newtonian' class instruments. These optics make the telescope particularly good for astrophotography. The eight millimetre finder shows you objects that are invisible to the naked eye alone, and helps you to navigate in the night sky.

The advantages in a nutshell

  • high light gathering power thanks to the 200mm aperture
  • parabolic main mirror
  • well suitable for astrophotography due to its fast optics

Carbon lens tube: The classic black carbon lens tube saves weight. This not only makes transportation easier but also takes load off the mount. At the same time, the thermal expansion coefficient of carbon fibre is considerably smaller than that of aluminium or steel. This makes the telescope's focus much more stable when is comes to changes in temperature.

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.
  • We also provide an edition of the exciting astronomy magazine, “Sterne und Weltraum” with each telescope.

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
200
Focal length (mm)
1000
Aperture ratio (f/)
5
Resolving capacity
0,58
Limit value (mag)
13,3
Light gathering capacity
820
Max. useful magnification
400
Tube weight (kg)
8
Tube length (mm)
900
tube diameter (mm)
230
Tube material
Carbon
Tube construction
Full tube
field (mm)
28

Reflector


Ventilation for central mirror
yes
Main mirror´s construction
parabolic
reflectivity
94
Secondary mirror diameter (mm)
63
Adjustable
yes
Primary mirror - Material
Quartz
protective layer
Quartz

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M54
Gear reduction
1:10 Fine movement

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Finder scope
8x50
Prism rail
Vixen-Style
Tube clamps
yes
Eyepiece adaptor
1,25" - 2"
Extension tubes
yes

General


Total weight (kg)
9
Series
Photon

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Recommended accessories

Workshop service (1)

Astroshop Collimation/adjustment Newtonian 8"-12"

$ 81.00*
Telescope accessories > Transport & storage (7)
Carry case

Geoptik Transport case for 8" Newtonians of up to 1000mm focal length

$ 129.00*
Telescope accessories > Other (9)
Finder

Omegon Radiant Finder with fastener

$ 49.90*
Eyepieces (5)
Eyepiece

Omegon LE Series Eyepiece, 12.5mm, 1.25''

$ 149.00*
Eyepieces > Other (7)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Moon filters & Polarizing filters (4)
Filters

Omegon Filters Variable grey filter 1.25"

$ 34.90*
Filters > Nebulae filters (8)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (1)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Camera adaptor (4)
Projection adapter

Omegon Camera adapter 1.25"

$ 24.90*
Astrophotography > Camera mounts (4)

Omegon Easypic Universal Smartphone Adapter

$ 129.00*
Astrophotography > Other (6)

TS Optics 1.0x2" coma corrector

$ 354.00*
Mountings & accessories (2)
Mount

Celestron Mount Advanced VX AVX GoTo

$ 1,390.00*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor > Lamps (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy (1)

Omegon 2'' filter wheel

$ 189.00*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 18.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

TS Optics Telescope N 200/1000 Carbon Photon OTA

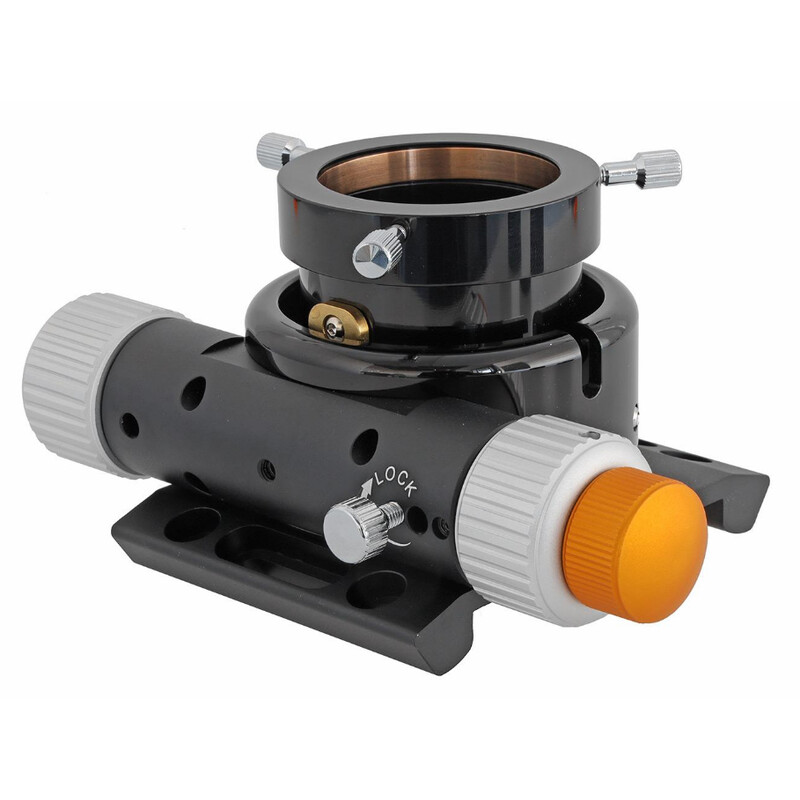

Drawtube
TS Optics Telescope N 200/1000 Carbon Photon OTA

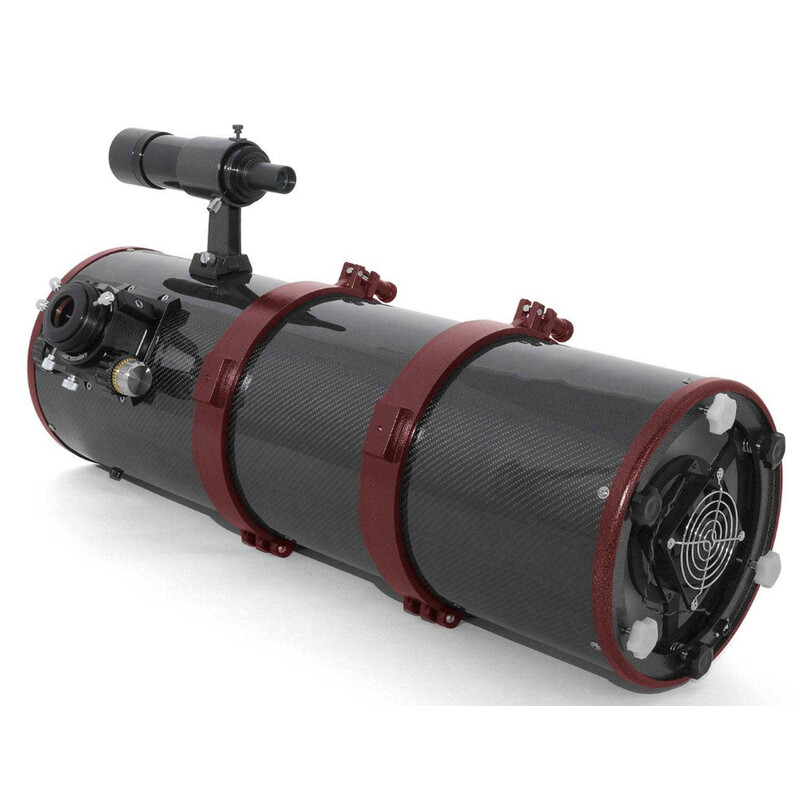

The mirror cools down faster using the fan
