Your partner for astronomy
Telescopes > OPT Radian AP 75/405 Petzval apochromatic refractor OTA
Product no.: 77131

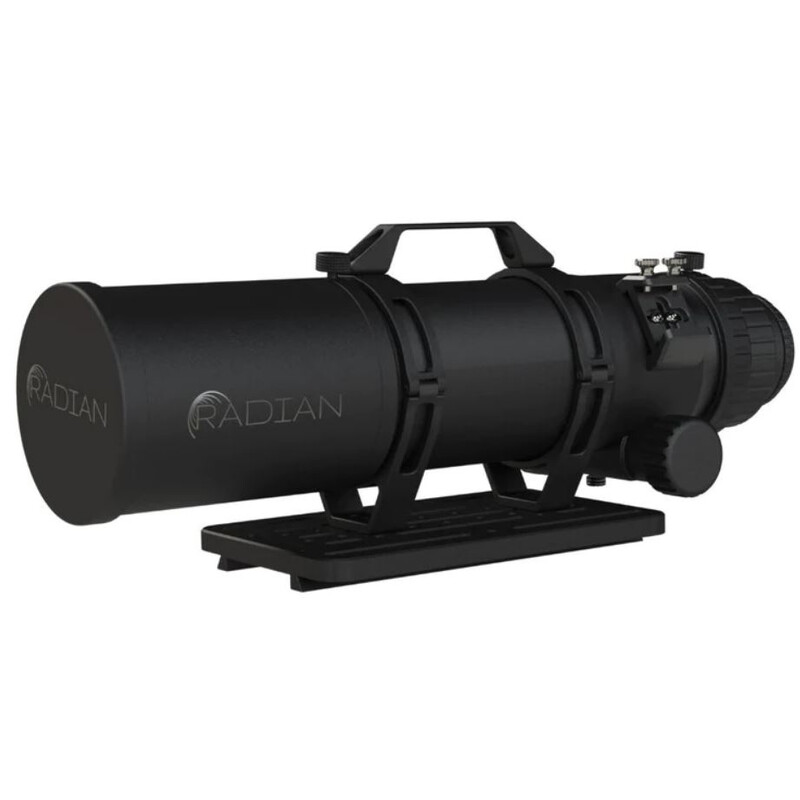

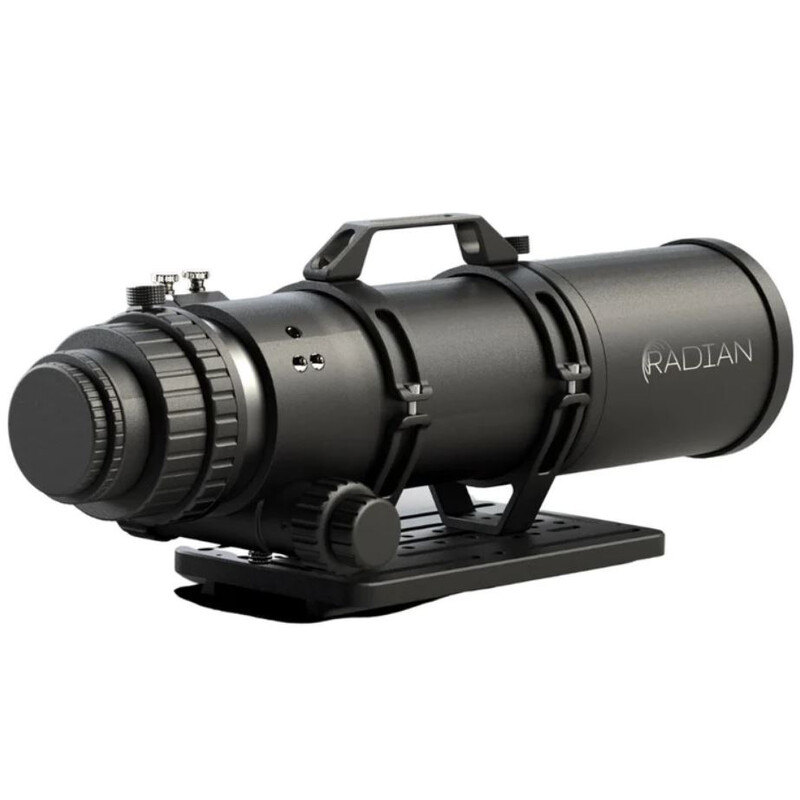

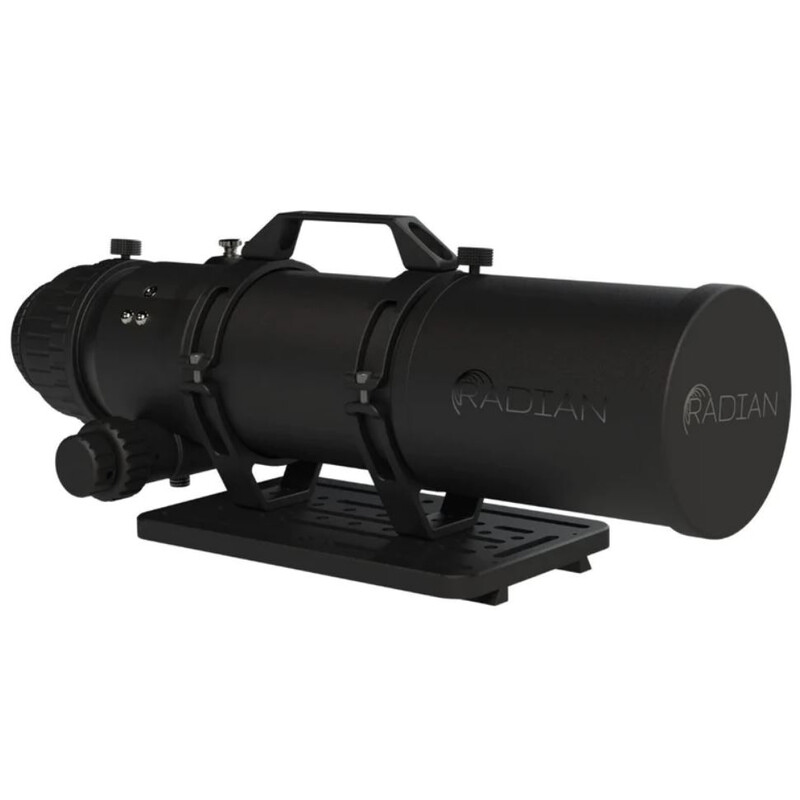

OPT Radian AP 75/405 Petzval apochromatic refractor OTA

$ 2,620.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
  • Four-lens Petzval design with FCD-100 glass
  • Lightweight and compact Astrograph
  • Supplied with Vixen/GP and Losmandy rail
  • Suitable for full-frame cameras

Product description

In brief:

  • Four-lens Petzval design with FCD-100 glass
  • Lightweight and compact astrograph
  • Supplied with Vixen/GP and Losmandy rail
  • Suitable for full-frame sensors

Following the success of the Radian 61, OPT is now going one step further and launching the Radian 75, a four-lens apochromatic lens with Petzval design, equipped with FCD-100 glass and highly corrected optics. An image illumination of 44 mm also allows perfect astrophotography with full-frame cameras. The well-dimensioned back focus of 74 mm leaves enough room for additional accessories. The 75 mm lens opening and a fast f/5.4 aperture make the Radian 75 a real photo machine with short exposure times – ideal for nebulae and galaxies! The Kern of the optical design is the Petzval design consisting of 4 elements in 3 groups, using Hoya FCD-100 glass. The result is a colour-pure, corrected image field with a diameter of over 44 millimetres.

The compact and lightweight refractor is also a perfect companion for mobile use, whether travelling or on a short trip to a nearby observation site. It can be used wonderfully on common photo mounts, such as the iOptron SkyGuider or the Skywatcher Star Adventurer GTi. To be prepared for all connection options, OPT supplies the Radian 75 with Vixen/GP standard and Losmandy prism rail. A carrying handle is included, as well as a protective cap and a Vixen level viewfinder shoe. The stylish and simple design, completely in black, also gives the Radian 75 an elegant appearance. High-quality optics with an elegant finish!

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
75
Focal length (mm)
405
Aperture ratio (f/)
5,4
Resolving capacity
1,84
Limit value (mag)
12,3
Light gathering capacity
110
Max. useful magnification
150
Tube weight (kg)
2,6
Tube length (mm)
386
Tube material
Aluminium
Coating
multiple
Tube construction
Full tube
dew cap diameter (mm)
89
lens design
Quadruplet
Glass material
HOYA FCD-100

Focuser


Tilting Adaptor
no
Type of build
Gear rack
Connecting threaded socket (camera-side)
M48

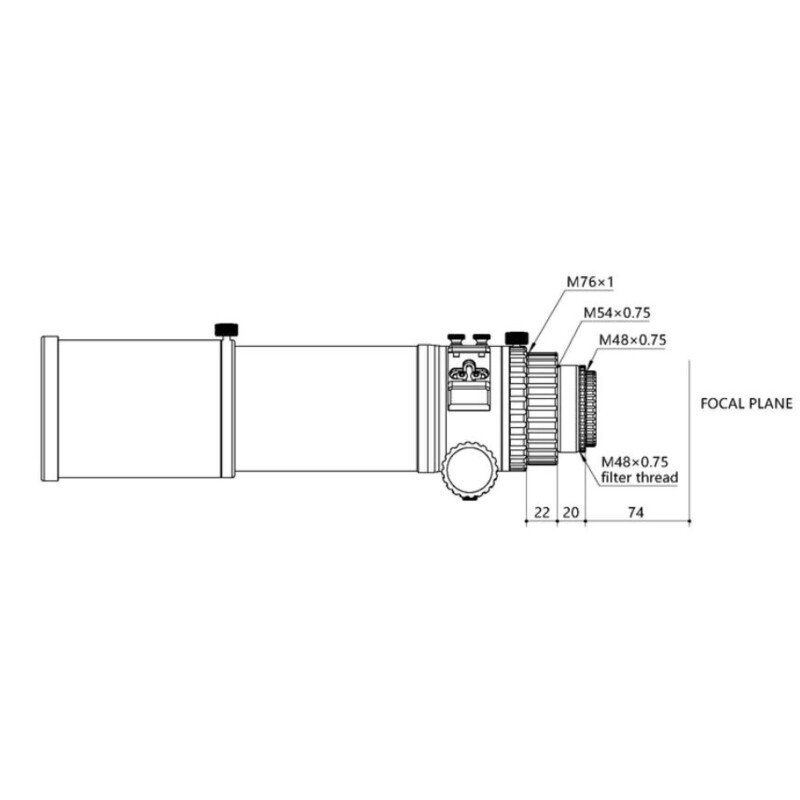

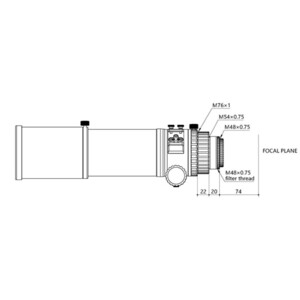

Backfocus (mm)
74
Free aperture (mm)
44
Rotating
yes
Connection ( to eyepiece)
2

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Carry case
no
Miscellaneous
Carrying handle
Thread for camera tripod
yes
Corrector
integrated
Prism rail
yes
Eyepiece adaptor
1,25" & 2"
Tube clamps
yes

General


Colour
black

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
not recommended
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
