Telescopes > Sharpstar > Sharpstar Apochromatic refractor AP 86/464 86SDQ OTA
Product no.: 62004

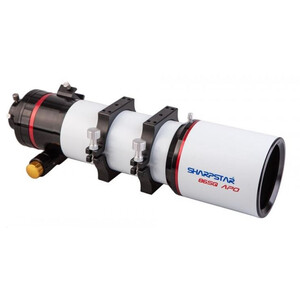

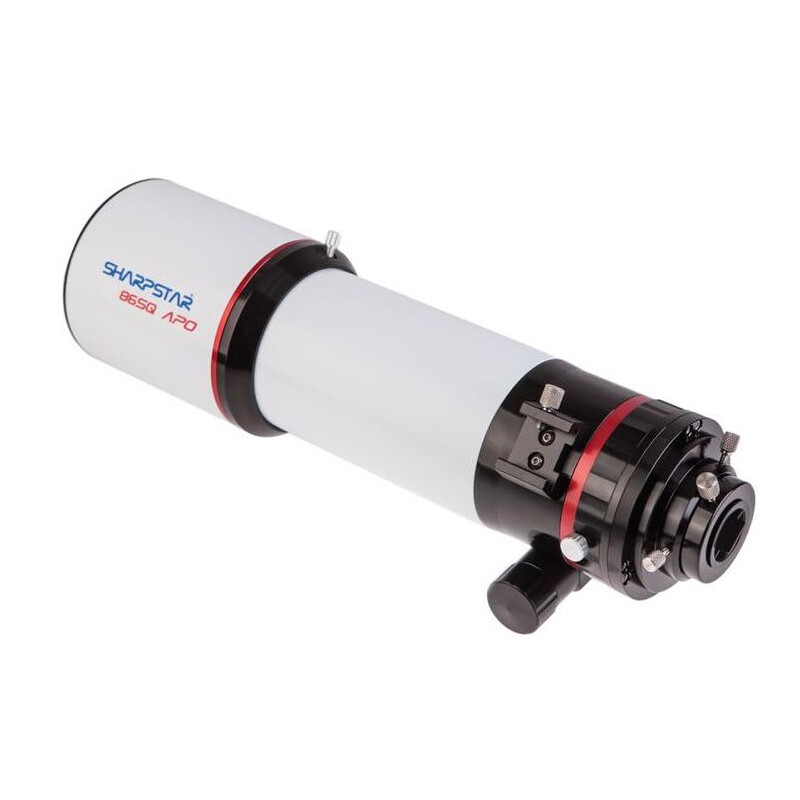

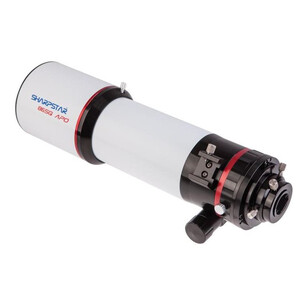

Apochromatic refractor AP 86/464 86SDQ OTA

$ 2,100.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The AP 86/464 SDQ optics are ideal for mobile astrophotography with large sensors. It is a modified Petzval design with an FDC-100 doublet objective and a 2-element corrector that is permanently installed in the tube. This ensures a corrected image field of 60 mm in diameter.

In the Petzval design, the objective lens is designed as a doublet and corrects spherical aberration (focus error) very well, resulting in a very sharp image. The downstream aperture corrects astigmatism. The additional doublet of two lenses in the beam path finally corrects the so-called coma. Ultimately, four lenses are used, which is why it can be referred to as a quadruplet apochromat, even though the objective lens is only a doublet.

Further advantages:

  • High-quality 3" R&P focuser with micro reduction, also for heavy cameras
  • 360° rotation and tilting mechanism
  • The back focus of 95 millimetres allows the adaptation of any photographic equipment and also visual observation

Each SDQ-Apo is optically and mechanically tested before shipping, using an artificial star at high magnification. This guarantees optimum performance.

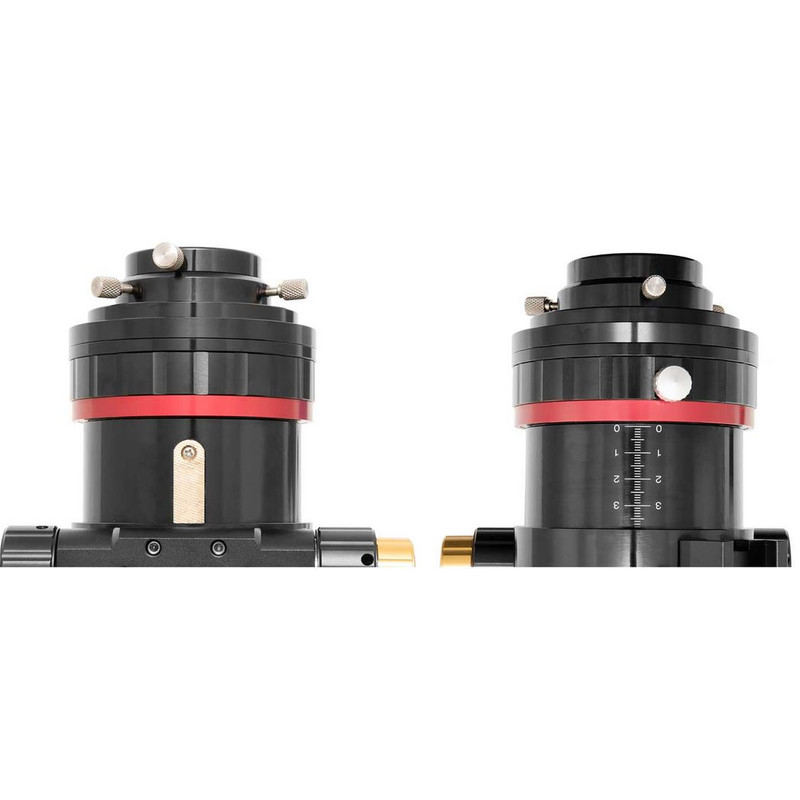

Tilting mechanism: A tilting device at the end of the focuser allows you to achieve even better field correction. Even minimal tilting, including of the camera sensor, has an effect on the image with this extreme telescope. With the three pull screws and three push screws at the end of the telescope, you can achieve individual fine adjustment for truly outstanding star sharpness from one end of the sensor to the other.

  • Connection of a DSLR camera: The APO has a working distance of 95 millimetres from the 2" receptacle. The focuser tube itself offers an adjustment range of 40 millimetres. A DSLR can be connected using the TS Optics Adaptors 2" / T2 40mm and a T2 ring suitable for the camera.
  • Connection of Astronomik cameras with sensors up to 30 mm diameter via the M82 thread: With the adaptors TS Optics Adapter Adaptors M82x1 / M48x0,75 and TS Optics Adapter M48 inverting ring you can adapt to the M48 thread. The working distance is then 102 mm. There is enough space to accommodate filter wheels, off-axis-guiders or similar.
  • Connection of DSLR and other cameras with large sensors from 30 mm diameter via the M82 thread: With the adaptors TS Optics Adapter Adaptors M82 / M68 you get the ZEISS level thread connection with M68x1 external thread at a working distance of 102 mm. You can connect your camera via the M68x1 adapter system from TS Optics and Baader.

The sample image shows the Trifid and Lagoon Nebula, taken by Luca Fornaciari with the Sharpstar 86SDQ on a Skywatcher Mount AZ-EQ6 GT SynScan GoTo with the ZWO Camera ASI 294 MC Pro Color.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
86
Focal length (mm)
464
Aperture ratio (f/)
5,4
Resolving capacity
1,6
Limit value (mag)
11,5
Light gathering capacity
150
Max. useful magnification
172
Tube weight (kg)
4
tube diameter (mm)
100
Tube material
Aluminium
Carrying length (mm)
430
Coating
multiple
Tube construction
Full tube
dew cap diameter (mm)
121
lens design
Quadruplet

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M82x1
Backfocus (mm)
95
Free aperture (mm)
76
Motorized
no
Ring clamp
yes
Load capacity (kg)
6
Gear reduction
1:10 fine focusing
Adjustment range (mm)
40
Rotating
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Finder scope
without
Corrector
integrated
Tube clamps
yes
Prism rail
Vixen-Style
Transport cases
yes
Deviating optics
no
Dew Shield
yes
Eyepiece adaptor
2" / 1.25"

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de

Recommended accessories

Telescope accessories > Prisms & Diagonal mirrors (4)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Adaptors (4)
Adapter

TS Optics Adapter M48 inverting ring

$ 26.90*
Telescope accessories > Transport & storage (5)

Omegon aluminium case, large

$ 89.00*
Telescope accessories > Other (5)
Finder scope

TS Optics Finder 8x50

$ 94.00*
Eyepieces (5)
Eyepiece

Omegon LE Series Eyepiece, 12.5mm, 1.25''

$ 99.00*
Eyepieces (9)
Eyepiece

Omegon Eyepiece OGDO 4mm 80°

$ 299.00*
Eyepieces > Other (7)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Moon filters & Polarizing filters (4)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Filters > Nebulae filters (6)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (2)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Cameras (13)
Camera

Omegon Camera GUIDE 2000 C Color

$ 199.00*
Astrophotography > Camera adaptor (5)
Adaptors

TS Optics Adaptors 2" / T2 40mm

$ 43.90*
Astrophotography > Camera mounts (3)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Astrophotography > Guiding (3)
Off-Axis-Guider

TS Optics Off-Axis-Guider Off-Axis Guider TSOAGM68

$ 234.00*
Astrophotography > Other (1)
Focusing Mask

TS Optics Focusing Mask Bahtinov 105-150mm

$ 32.90*
Observatories (1)

Omegon Tent observatory

$ 175.00*
Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 26.90*
Solar Observation (2)

Baader Sun filter foil 20 x 29 cm

$ 33.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Sharpstar Apochromatic refractor AP 86/464 86SDQ OTA

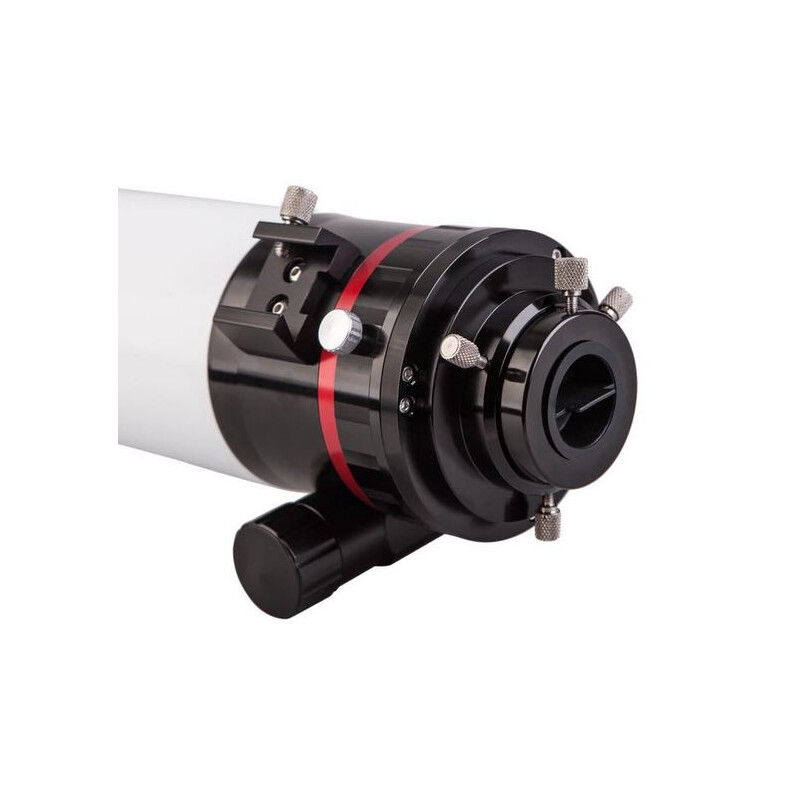

Focuser
Sharpstar Apochromatic refractor AP 86/464 86SDQ OTA

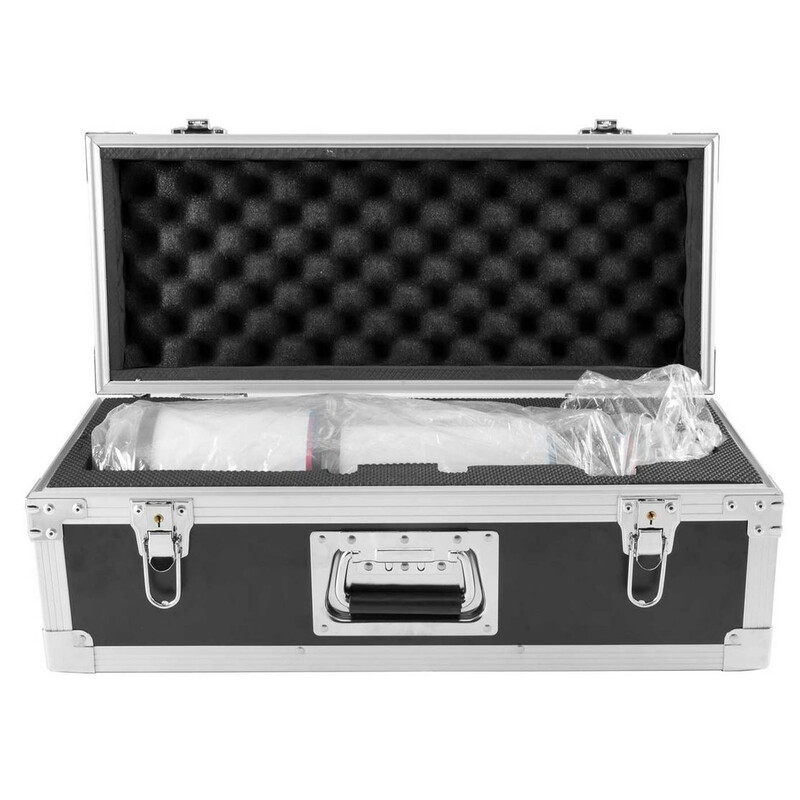

Transport cases
