Apochromatic refractor AP 150/1200 SD f/8 FPL53 OTA

RRP: $ 4,430.00 Our price:
$ 3,380.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

In brief:

  • Large refractor with 2-element objective
  • Colour-pure image thanks to FPL53 and Lanthanum glass
  • Mechanically very stable, Losmandy rail
  • Multi-coated, with internal baffles for high contrast
  • Focuser with360° rotation

The AP 150/1200 is the largest lanthanum/FPL53 Doublet refractor. It has the same optical design as the successful Photoline 125 mm Apo. The inexpensive yet powerful optical concept makes this dream telescope affordable for amateur astronomers. Whether you are interested in solar and planetary photography and observation or astrophotography of nebulae, star clusters and galaxies, this telescope will offer you very good performance.

The Doublet objective with SD glass, one lens made of FPL53 and the other of special lanthanum glass, delivers maximum performance and colour correction previously only known from triplet objectives. Each Apo is tested on our optical bench before shipping to ensure you always have optimum performance.

Weighing only 9 kilograms, the telescope is still portable and can be carried by mounts from EQ6-R.

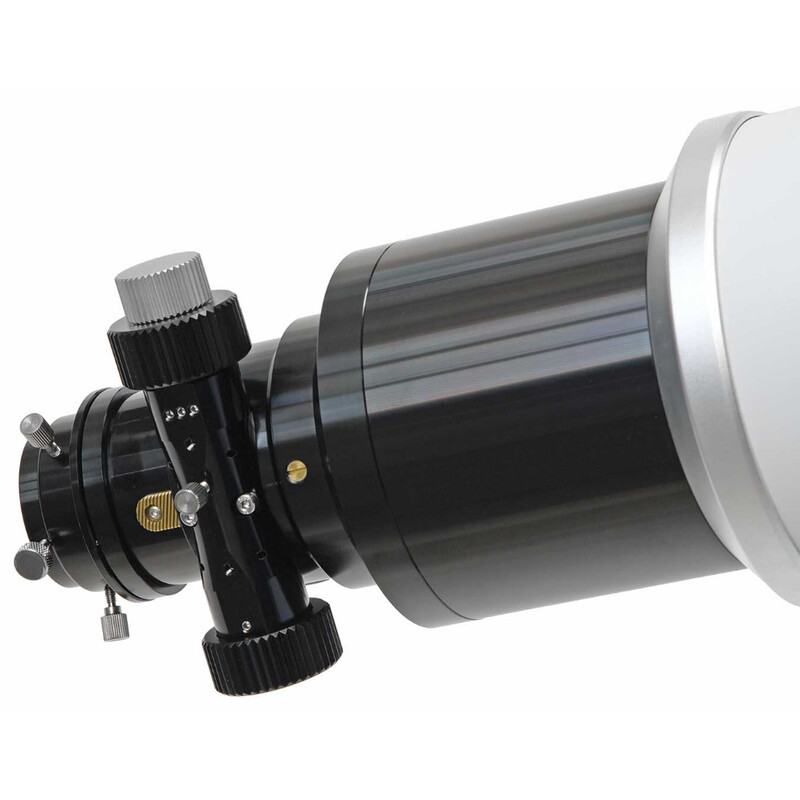

The 2.5" R&P focuser is designed for photography with heavy cameras and for observation. The focuser holds camera-side accessories up to about 5 kg without causing tilting. The illumination by the focuser is sufficient for full frame sensors.

  • Adjustment via rack and pinion - no friction - no yielding as with a Crayford focuser
  • M63x1 threaded connection for further adaptations
  • self-centering eyepiece and accessory adapter for 2" and 1.25"
  • 360° rotation for optimal positioning of the camera is built-in
  • Dual-speed for accurate focusing is built in
  • Motorized adjustment can be retrofitted

In the box:

  • Photoline 150 mm Apochromat
  • CNC tube rings
  • Dovetail bar
  • Carrying handle
  • Finder shoe

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

TS Optics is a brand of Teleskop-Service.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
150
Focal length (mm)
1200
Aperture ratio (f/)
8
Resolving capacity
0,92
Limit value (mag)
12,7
Light gathering capacity
460
Max. useful magnification
300
lens design
Doublet
Glass material
OHARA FPL-53
Tube weight (kg)
9
tube diameter (mm)
156
Tube material
Aluminium
Carrying length (mm)
1100
Coating
FMC
Stray light baffles in the OTA
yes
Tube construction
Full tube
dew cap diameter (mm)
186

Focuser


Type of build
rack and pinion
Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M63
Connecting thread (telescope side)
M124
Free aperture (mm)
64
Motorized
no
Ring clamp
yes
Load capacity (kg)
5
Gear reduction
yes
Rotating
yes
Backfocus (mm)
130

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Deviating optics
no
Prism rail
Losmandy-Style
Carrying handle
yes
Extension tubes
no
Transport cases
no
finder base
Vixen/Skywatcher Level
Eyepiece adaptor
2" / 1.25"
Tube clamps
yes

General


Series
Photoline

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

Manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de

Recommended accessories

Telescope accessories > Prisms & Diagonal mirrors (4)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Finder (3)
Finder scope

TS Optics Finder 8x50

$ 94.00*
Telescope accessories > Transport & storage (6)
Carry case

Oklop Carry case Padded bag for 150/1200 Refractors

$ 81.00*
Telescope accessories > Other (8)

ZWO Electronic Automatic Focuser EAF N

$ 242.00*
Eyepieces (4)
Eyepiece

Omegon Eyepiece LE Planetary 18mm 1,25''

$ 149.00*
Eyepieces (3)
Eyepiece

Omegon SWA 38mm eyepiece, 2”

$ 179.00*
Eyepieces (9)
Eyepiece

Omegon Eyepiece OGDO 4mm 80°

$ 299.00*
Eyepieces > Other (4)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Filters > Moon filters & Polarizing filters (4)
Filters

Omegon Filters Variable grey filter 1.25"

$ 39.90*
Filters > Nebulae filters (6)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Filters > Other (2)
Filters

Omegon Filters Color filter set 1,25'' (6 pieces)

$ 69.00*
Astrophotography > Cameras (13)
Camera

Omegon Camera GUIDE 2000 C Color

$ 199.00*
Astrophotography > Camera adaptor (4)
Projection adapter

Omegon Camera adapter 1.25"

$ 24.90*
Astrophotography > Camera mounts (3)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Astrophotography > Guiding (4)
Guidescope

TS Optics Guidescope Deluxe 60 mm Guiding/Finder scope with micro focusing

$ 222.00*
Astrophotography > Other (3)

TS Optics Reducer/Corrector Photoline 0,79x 3"

$ 465.00*
Mounts & accessories (2)
Mount

Skywatcher Mount EQ6-R Pro SynScan GoTo

$ 2,330.00*
Observatories (1)

Omegon Tent observatory

$ 175.00*
Media (4)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Globes & Maps (1)
Continental map

Oculum Verlag Sky Quality Map Europe

$ 26.90*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

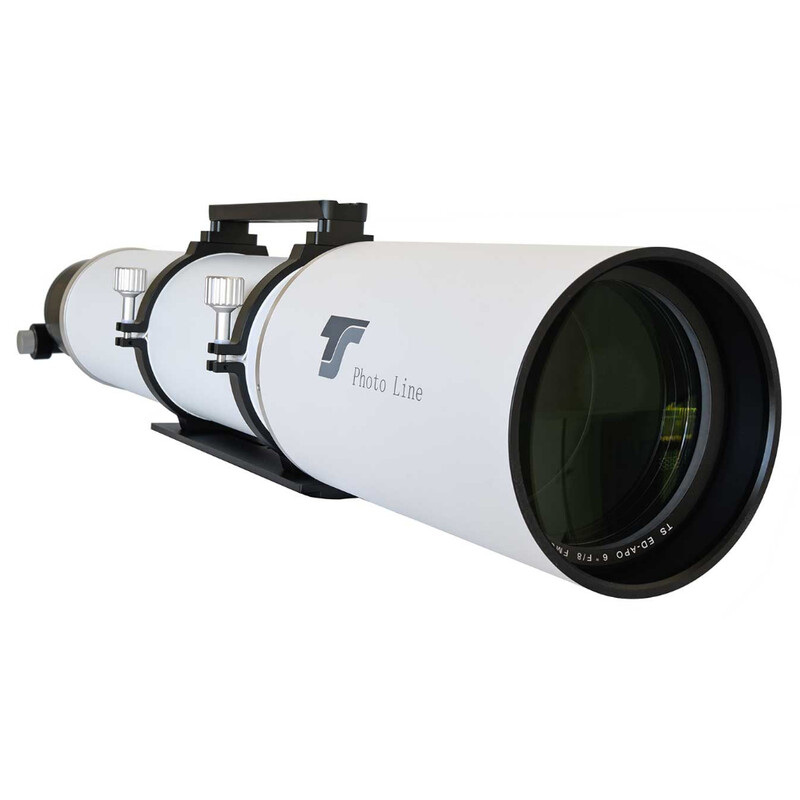

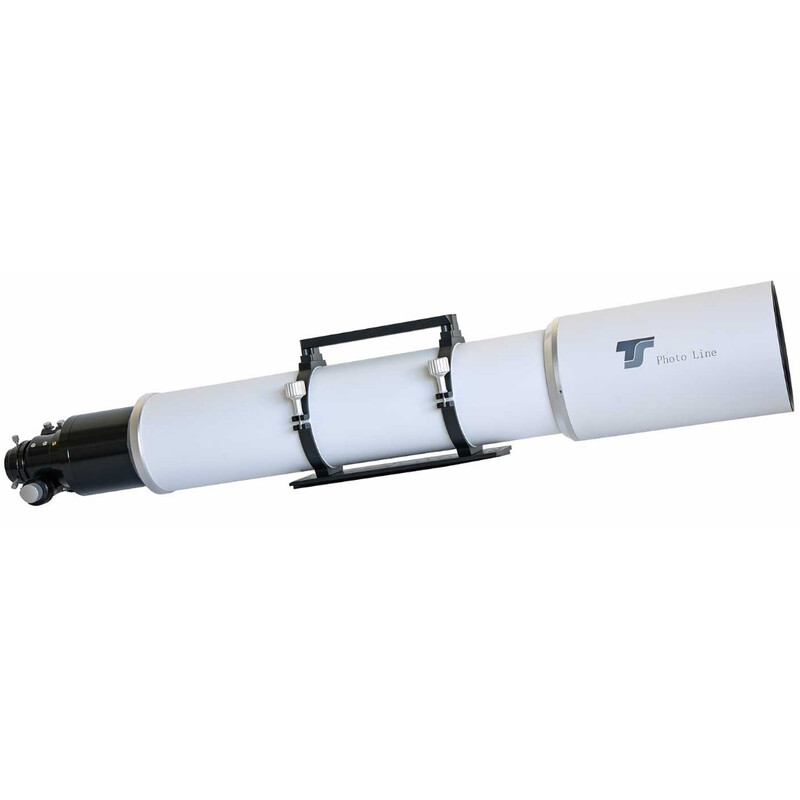

TS Optics Apochromatic refractor AP 150/1200 SD f/8 FPL53 OTA

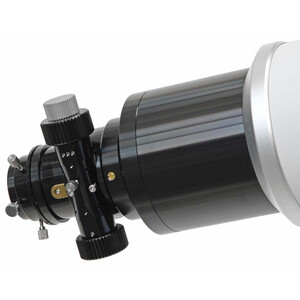

Focuser
TS Optics Apochromatic refractor AP 150/1200 SD f/8 FPL53 OTA

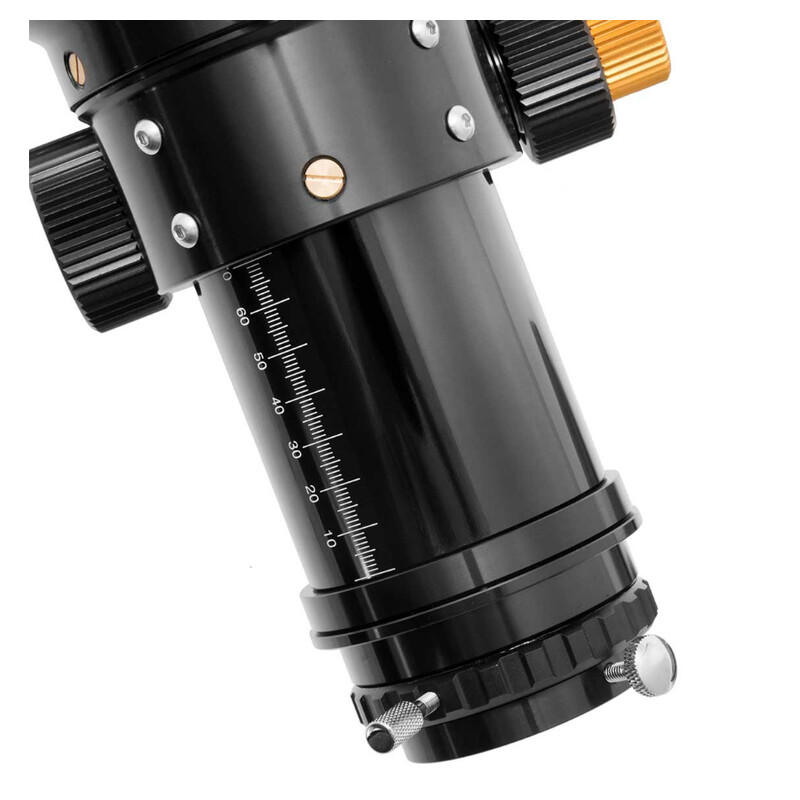

Adjustment range
TS Optics Apochromatic refractor AP 150/1200 SD f/8 FPL53 OTA

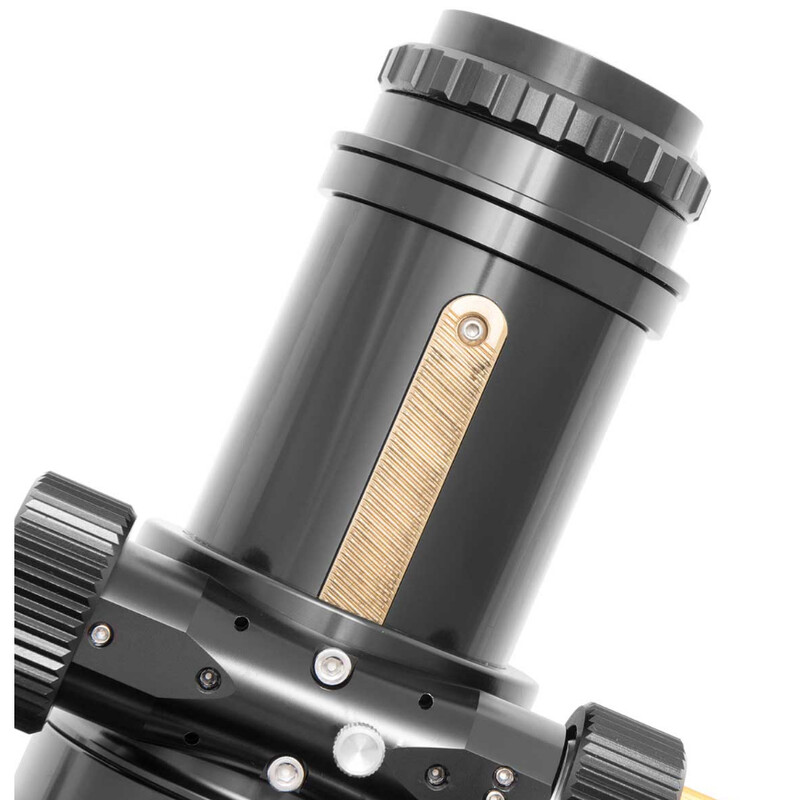

rack and pinion
